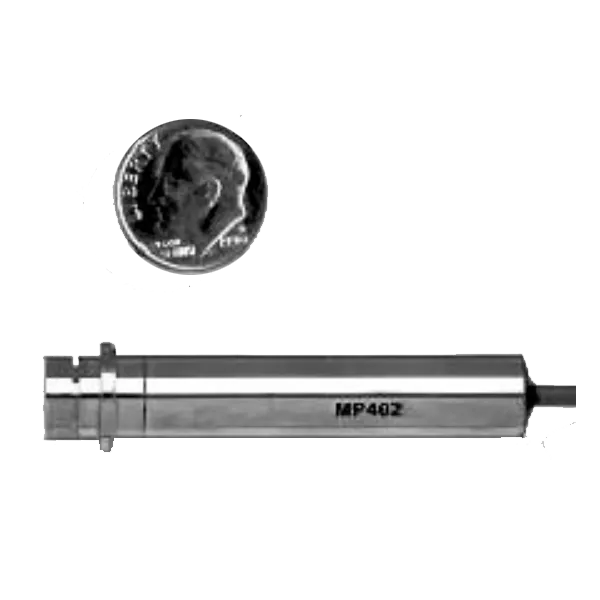

MP402 Miniature Pressure Transducer

Automatically compensates for line resistance and power supply changes


Key features

  • Flush-mountable, low-cost miniature pressure sensor
  • Automatic compensation of line resistance and power supply changes
  • Absolute or sealed reference options
  • Options for long-term stability
  • High vibration options
  • Made from corrosion-resistant titanium (6AL4V)
  • Excellent performance in most corrosive media

About the MP402 Miniature Pressure Transducer

Model MP402 is a low cost, miniature pressure sensor for general use that automatically compensates for line resistance and power supply changes. This transducer is made of corrosion-resistant titanium (6AL4V) and utilises bulk-type semiconductor strain gauges bonded directly to the inner surface of the machined diaphragm.

The hermetic head is located directly behind the strain gauge diaphragm section of the sensor and seals the sensitive gauges in an inert environment, significantly increasing stability and reliability. Contact us for special temperature or pressure ranges and high vibration resistance.
Long-term stability versions are available. Absolute or sealed reference sensors are optionally available.

Applications

  1. Test and measurement equipment
  2. Production equipment and controls
  3. Energy controls
  4. Laboratory devices and equipment
  5. Liquid level
  6. Calibration equipment

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Acceleration 100g any axis
Accuracy 0.25% to 0.5%
Burst pressure 6.0x Range
Compensated temperature -1 °C to 54 °C (30° to 130°F)
Input load resistance (standard) 500 Ohm
Insulation resistance minimum 50 MOhm @ 50 VDC
Maximum input voltage 30 V for short periods
Measurement range 0 - 0.35 bar to 0 - 700 bar (0 - 5 psi to 0 - 10 kpsi)
Media compatibility (wetted surface) Liquids & Gases compatible with Titanium 6AL4V
Output 16 mA [24 VDC]
Over pressure 2.0x Range
Pressure type sealed, absolute, gauge
Storage and operating temperature -18°C to 82°C (0° to 180°F)
Usable pressure 3.0x Range
