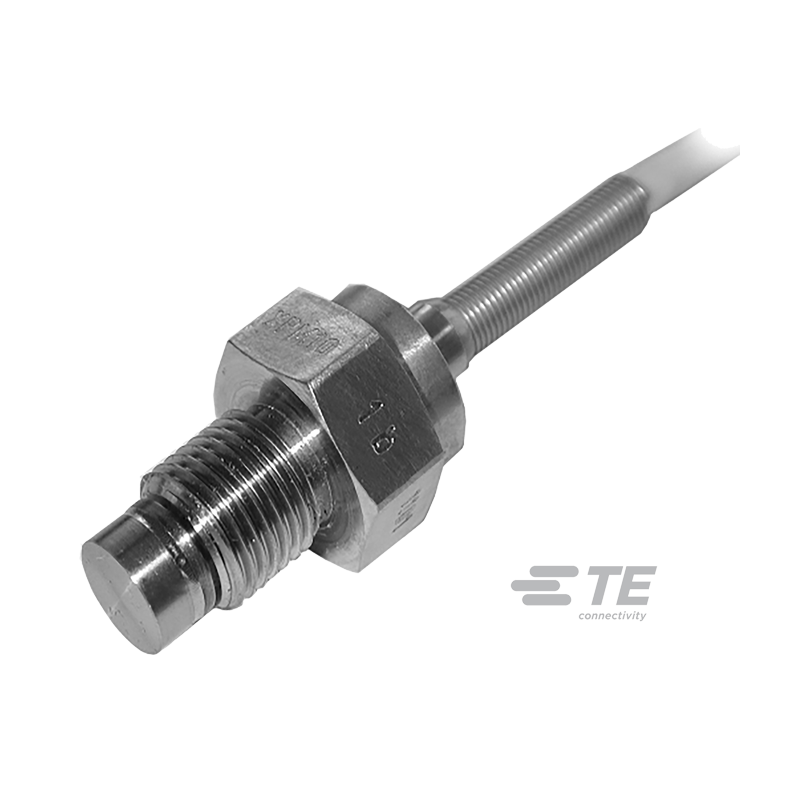

XPC10 Miniature Pressure Sensor

High temperature miniature pressure sensor


Key features

  • Measuring ranges from 0 ... 10 bar to 0 ... 500 bar, absolute and relative pressure
  • Combined error linearity & hysteresis 0.25 % to 0.5 %
  • Output signal 1.2 mV/V
  • Supply voltage 10 VDC; optional integrated amplifier
  • Operation at high temperatures
  • Thread M10x1 or 3/8-24 UNF
  • Stainless steel construction
  • For static and dynamic applications
  • Low sensitivity to torques during installation

About the XPC10 Miniature Pressure Sensor

The miniature pressure sensor type XPC10 has been specially developed for measuring static and dynamic pressures at temperatures between -40 °C and 220 °C (models without amplifier). As it is made of stainless steel, it is particularly suitable for use with corrosive liquids and gases under harsh industrial conditions.

To enable easy installation and long-term operation, this sensor uses SanShift™ technology, which largely eliminates zero deviations caused by torques during installation. The sensor element of the XPC10 consists of foil strain gauges arranged in a Wheatstone bridge to achieve very good temperature stability.

Applications

  • Aeronautics
  • Test benches
  • Control systems for air conditioning systems
  • Transmission pressures
  • Miniature dosing devices

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy 0.25% to 0.5%
Dimensions Hex 15 mm [ Hex .59 in ]
Measurement range 0 - 10 bar to 0 - 500 bar (0 - 150 to 0 - 7500 psi)
Operating temperature -40 to 220 °C [ -40 to 428 °F ]
Options Cable Length, Compensation Temperature Range, Connector Output, IP67 Protection, With Amplification (0.5 - 4.5V), Without Amplification, Zero Shift
Output 1.2 mV/V [10 VDC], 0.5 - 4.5 V [10 - 30 VDC]
Overpressure 1.5X FS
Port material Stainless Steel, Titanium
Pressure port/fitting 3/8-24 UNF Male, M10x1 Male
Pressure type gauge, absolute, sealed
