  5. XPM10 Miniature Pressure Sensor

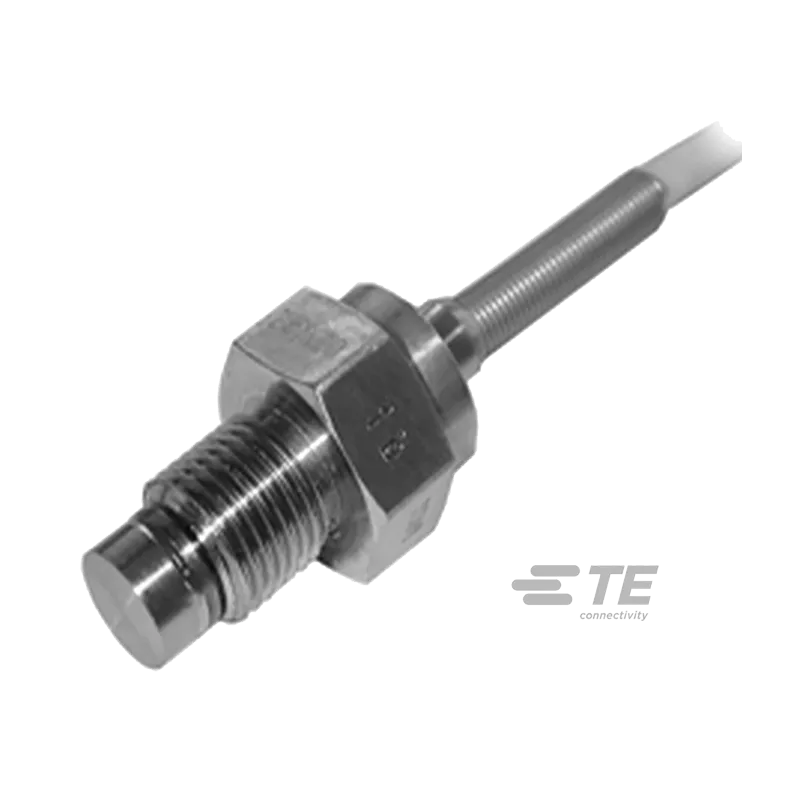

XPM10 Miniature Pressure Sensor

Miniature threaded pressure sensor


Key features

  • Measuring ranges from 0 ... 1 bar to 0 ... 350 bar
  • Absolute and relative pressure
  • Linearity deviation 0.25 % (0.35 % for 1 bar)
  • Linearity up to ±0.25% F.S
  • Very low mass, approximately 20 grams without cable
    (dependent on options)
  • Supply voltage 10 VDC
  • Flush diaphragm
  • Insensitive to installation torque
  • Connection thread M10 x 1
  • For static and dynamic applications
  • High Level Tension Output Available
  • Low Installation Torque Sensitivity

General Information


The XPM10 is a miniature metric threaded pressure sensor designed to measure static and dynamic bridges in a wide range of applications. It is also suitable for harsh environmental conditions. It is made of stainless steel (titanium optional) and is available in measurement ranges from 1 bar to 350 bar. The XPM10 uses SanShift™ technology, which largely eliminates zero deviations caused by torques during installation.

The XPM10 pressure transducer is also available with an integrated amplifier. The following amplifiers are available:
A1: output signal 0.5 ... 4.5 V
A2: Output signal ±5 V
A3: Output signal 4 ... 20 mA

Features

  • Measuring ranges from 0 ... 1 bar to 0 ... 350 bar
  • Absolute and relative pressure
  • Linearity up to ±0.25% F.S
  • Very low mass, approximately 20 grams without cable(dependent on options)
  • Output signal 10 mV/V (5 mV/V for 1 bar)
  • Supply voltage 10 VDC
  • Optionally with integrated electronics
  • Flush diaphragm
  • Insensitive to installation torque
  • Connection thread M10 x 1
  • For static and dynamic applications
  • High Level Tension Output Available
  •  Low Installation Torque Sensitivity
  • Stainless steel construction
  • Optional output 4 ... 20 mA 2-wire
  • Optional IP67


Applications

  • Hydraulic control processes
  • Explosion test benches
  • Brake pressure
  • Laboratory and research

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy 0.25% to 0.35%
Dimensions Hex 15 mm [ Hex .59 in ]
Measurement range 0 - 1 bar to 0 - 350 bar [ 15 up to 5000 psi ]
Operating temperature -40 to 120 °C [ -40 to 250 °F ] for Non Amplified
Options Cable Length, Compensation Temperature Range, Connector Output, IP67 Protection, With Amplification (0.5 - 4.5V), Without Amplification, Zero Shift
Output 12 mV, 4±0.2 V
Overpressure 1.5X FS
Port material Stainless Steel, Titanium
Pressure port/fitting 3/8-24 UNF Male, M10x1 Male
Pressure type gauge, absolute, sealed
Supply voltage 10 V, 10 – 30 V
