XPM4 Miniature Pressure Transducer

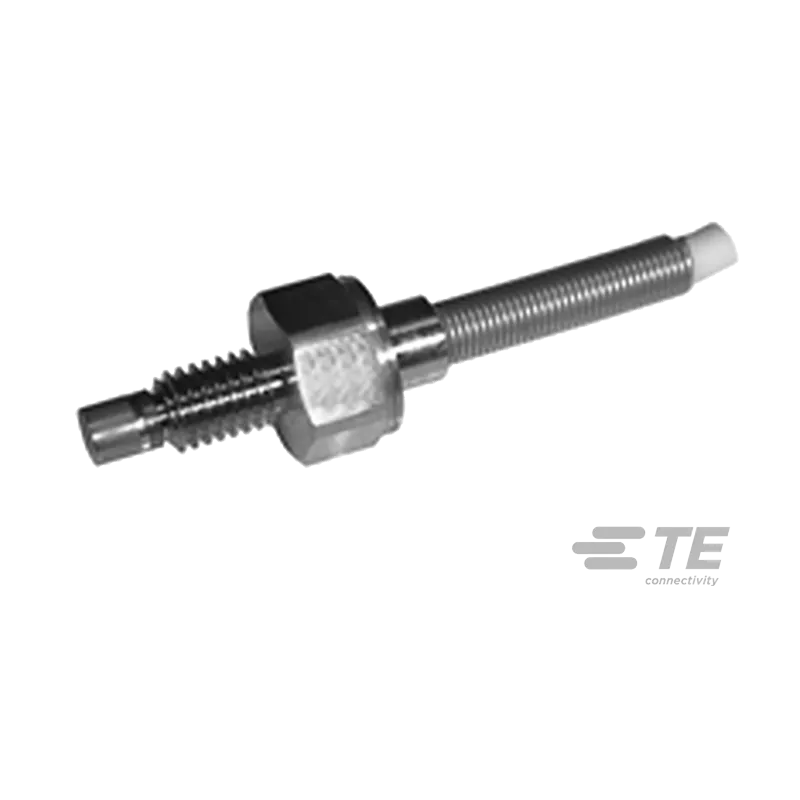

Miniature threaded pressure transducer


Key features

  • Measuring ranges 0 ... 5 bar to 0 ... 200 bar, absolute and relative pressure
  • Linearity deviation 0.35 % to 0.5 %
  • Output 10 mV/V (3 mV/V for 5 bar and 6 mV/V for 10 bar)
  • Supply voltage 10 VDC
  • Flush diaphragm
  • Titanium construction
  • Insensitive to installation torque
  • M4 x 0.7 thread

About the XPM4 Miniature Pressure Transducer

The XPM4 is a miniature pressure sensor that has been developed for measuring static and dynamic pressures in a wide range of applications. With a titanium housing and flush diaphragm, the sensor can also be used in many corrosive environments.

The XPM4 uses SanShift™ technology, which largely eliminates zero deviations caused by torques during installation. The sensor element consists of a temperature-compensated Wheatstone bridge made of highly stable, micromechanically manufactured silicon strain gauges. The electrical connection is made via a connection cable with strain relief spring; a plug-in connection is also available as an option.

Features

  • Measuring ranges 0 ... 5 bar to 0 ... 200 bar, absolute and relative pressure
  • Linearity deviation 0.35 % to 0.5 %
  • Output 10 mV/V (3 mV/V for 5 bar and 6 mV/V for 10 bar)
  • Supply voltage 10 VDC
  • Flush diaphragm
  • Titanium construction
  • Insensitive to installation torque
  • M4 x 0.7 thread
  • Linearity up to ±0.35%
  • For static and dynamic applications
  • Cable connection, optionally with plug


Applications

  • Aeronautics
  • Explosion test benches
  • Kiln monitoring equipment
  • Robots and effectors
  • Laboratory and research

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy 0.35% to 0.5%
Dimensions Hex 8 mm [ Hex .315 in ]
Measurement range 0 - 5 bar to 0 - 200 bar (0 - 75 to 0 - 3000 psi)
Operating temperature -40 to 120 °C [ -40 to 248 °F ]
Options Cable Length, Compensation Temperature Range, Connector Output, IP67 Protection, Non-standard Power Supply Calibration
Output 3 to 10 mV/V [10 VDC], depending on range
Overpressure 2X FS
Port material Titanium
Pressure port/fitting M4x0.7 Male
Pressure type gauge, absolute, sealed
