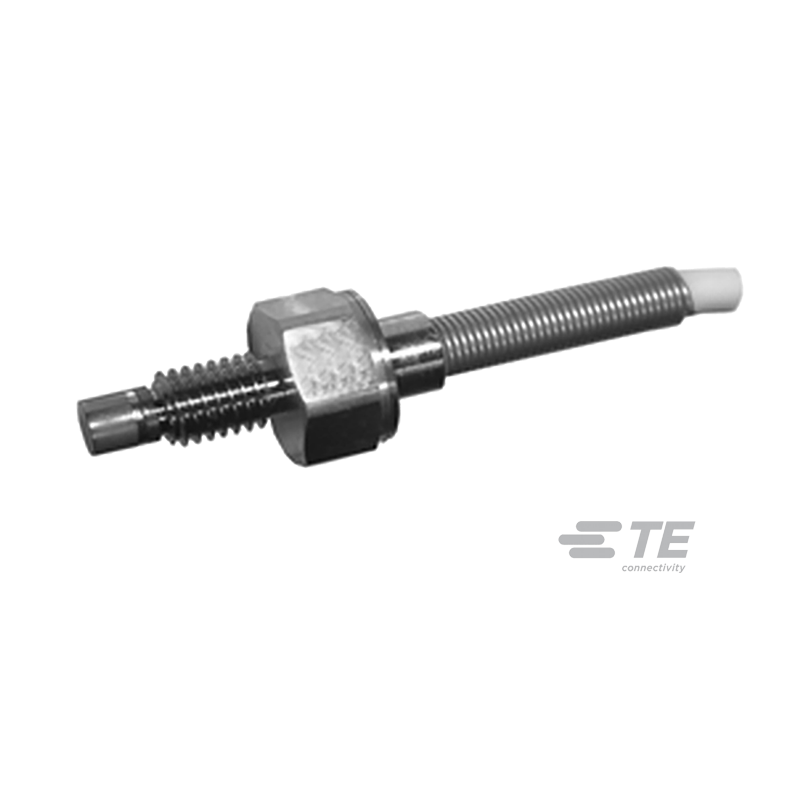

XPM6 Miniature Pressure Sensor

Miniature Threaded Pressure Transducer


Key features

  • Ranges sealed and gauge pressure from 100 to 1,000 bar
  • For static and dynamic applications
  • Linearity ±0.25 % FS

General Information


The XPM6 miniature pressure sensor is made of stainless steel and is available in ranges from 0-100 to 0-1,000 bar. In the MH version, an additional protective device can be inserted into the H-shaped diaphragm for protection in applications involving flash point determination or explosive mixtures up to 1,000 °C.
The XPM6 uses innovative SanShift™ technology that minimizes zero offsets due to installation torque. The XPM6's sensing element is equipped with a fully temperature-compensated Wheatstone bridge, which features extremely stable micromachined silicon strain gauges.

Features

  • Ranges sealed and gauge pressure from 100 to 1,000 bar
  • Stainless steel housing
  • Optional high output power
  • For static and dynamic applications
  • Linearity ±0.25 % FS
  • M6x1 thread
  • Flush diaphragm
  • Low installation torque sensitivity


Fields of application

  • Explosion test benches
  • Particularly small miniature devices
  • Robotics and actuators
  • Brake system pressure
  • Laboratory and research

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy 0.25%
Dimensions Hex 12 mm (Hex .472 in)
Measurement range 0 - 100 bar to 0 - 1000 bar (1.5 kpsi to 15 kpsi)
Operating temperature -40 to 150 °C  (-40 to 302 °F)
Options Cable Length, Compensation Temperature Range, H Diaphragm, High Accuracy, Sensitivity Shift, Unipolar Power Supply, Zero Shift
Output 0.5 - 4.5 V [10 - 30 VDC]
Overpressure 2X FS
Port material Stainless Steel
Pressure port/fitting M6x1 Male
Pressure type gauge, sealed
