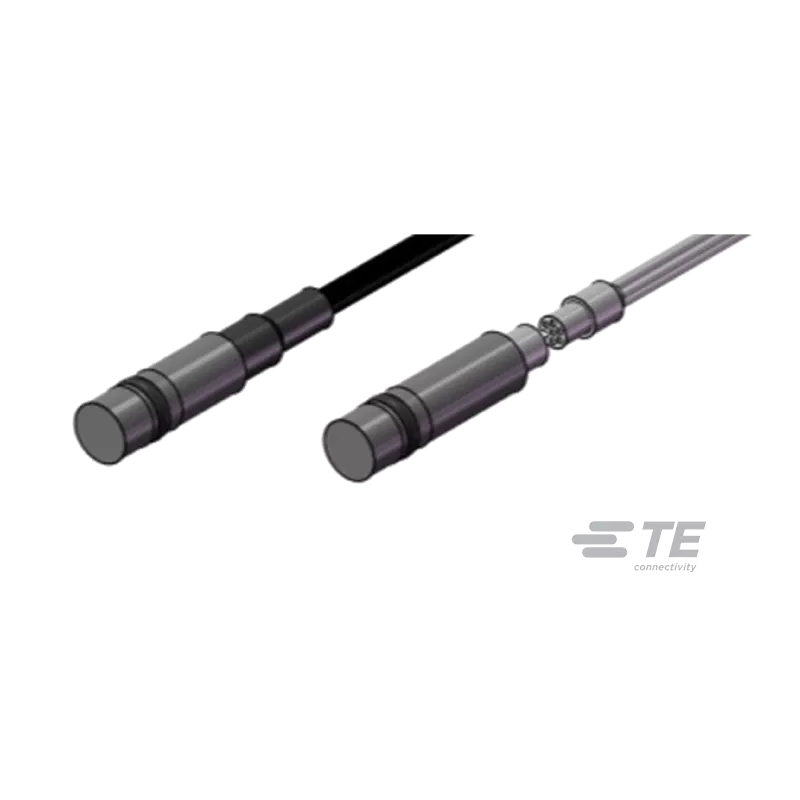

XPR46 Miniature Pressure Transducer

With integrated temperature compensation


Key features

  • Flush diaphragm, titanium construction
  • Full measuring range from 0.5 to 100 bar
  • Flat profile with a diameter of 4.6 mm
  • Ingress protection according to IP66
  • High bandwidth
  • Miniature design and light weight
  • Operating temperature from -40 °C to +120 °C

General Information


The XPR46 withstands most corrosive liquids thanks to its full titanium construction and flush diaphragm. The XPR46's sensing element features a fully temperature compensated Wheatstone bridge with extremely stable micro-machined silicon strain gauges for optimum performance, especially at low ranges and frequencies.

Features

  • Flush diaphragm, titanium construction
  • Full measuring range from 0.5 to 100 bar
  • Flat profile with a diameter of 4.6 mm
  • Ingress protection according to IP66
  • High bandwidth
  • Miniature design and light weight
  • Operating temperature from -40 °C to +120 °C
  • Application areas


Chemical processing

  • Laboratory and research
  • Test industry

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy 0.5% to 1.0%
Dimensions Dia 4.6 mm [ Dia .18 in ]
Electrical connection Custom Cable Length, Integral Omnetics Receptable
Measurement range 0 - 0.5 to 0 - 100 bar (0 - 7.5 to 0 - 1500 psi)
Operating temperature -40 to 120 °C [ -40 to 248 °F ]
Options Compensation Temperature Range, Excitation 5 Vdc
Output 2.5 to 12.5 mV/V [10 VDC], depending on range
Overpressure 2X, 4X, 8X FS
Port material Titanium
Pressure type sealed, absolute
