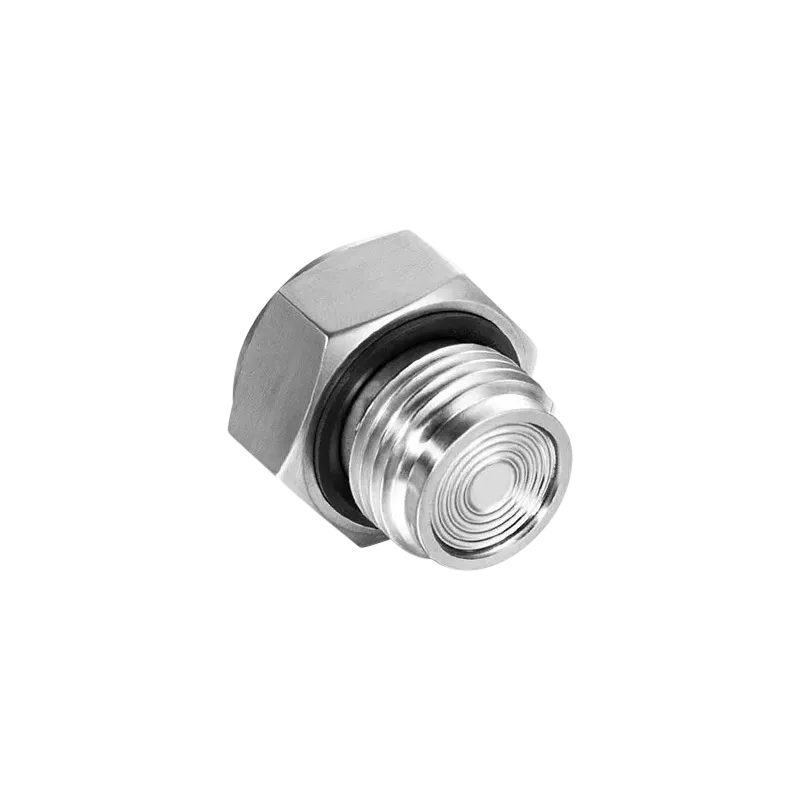

MPM280PD1S Sanitary pressure sensor module

---

Key features

• Pressure range: 0bar~0.35bar…35bar
• Gauge, Absolute and Sealed gauge
• Constant current or Constant voltage
  power supply for option
• Isolated construction to measure various fluid media

---

About the MPM280PD1S Sanitary pressure sensor module

The MPM280PD1S Sanitary is specifically designed for high-temperature sanitary media. Engineered with hygiene in mind, it features easy-to-clean and disinfect components. The diaphragm resists bacteria and dirt buildup, ensuring a high standard of cleanliness. Available with male thread and clamp connections, the MPM280PD1S is ideal for the pharmaceutical, food, and beverage industries. It is also suitable for pressure detection in environments where contamination is a concern.

We can use gauge type of general, assembled and flush diaphragm type MPM280 to measure pressure below air pressure, the min. pressure can be around -1bar.

Applications

• Refrigeration equipment
• Refrigeration equipment and Air
  conditioner
• CIP or SIP online cleaning or sterilization system

Electrical Performance

• Power supply: ≤2.0mA DC
• Electrical connection: φ0.5mm Kovar pin or 100mm silicon rubber flexible wires
• Common mode voltage output: 50% of input (typ.)
• Input impedance: 2.5kΩ~8kΩ
• Output impedance: 3.5kΩ~6kΩ
• Response (10%~90%): <1ms
• Insulation resistor: 100MΩ@100V DC
• Overpressure: 2 times FS

Construction Performance

•  Diaphragm: Stainless steel 316L
• Housing: Stainless steel 316L• Pin: Kovar• O-ring: FKM
•  Net weight: ~50g(PC1) ~148g(PD1) ~163g (PD1s)

Environment Condition

• Shock: No change at 10gRMS,(20~2000)Hz
• Impact: 100g, 11ms
• Media compatibility: The gas or liquid which is
  compatible with construction material and FKM

Basic Condition

• Media temperature: (25±1)°
• Environment temperature: (25±1)°C
• Shock: 0.1g (1m/s2) Max.
• Humidity: (50±10)%RH
• Local air pressure: (0.86~1.06)bar
• Power supply: (1.5±0.0015)mA DC

---
