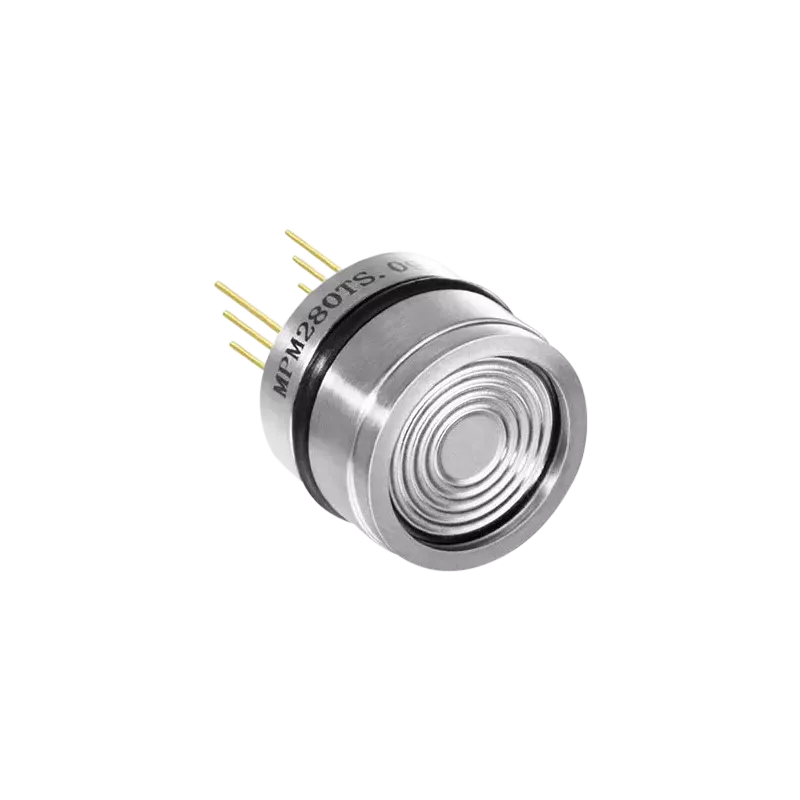

MPM280TS Anti-corrosive pressure sensor module

For construction material, the isolated diagram uses tantalum material and housing uses Hastelloy C material..

Key features

Pressure range: -1.0bar~0bar~1.0bar...350bar
Gauge, Absolute and Sealed gauge
Tantalum Diaphragm, SS316L

About the MPM280TS Anti-corrosive pressure sensor module

The MPM280TS is made of corrosion-resistant materials to resist the erosion of corrosive media. Tantalum isolated diagram plus SS316L shell housing. Viton O-rings for sealing. Both standard and customized mechanical and electrical configurations are available.

The anti-corrosive property of MPM280TS makes it ideal for use in a wide range of industrial applications. By providing accurate and reliable pressure measurements, even in corrosive environments, anti-corrosive pressure sensors help ensure safe and efficient operations, while reducing downtime and maintenance costs.

MPM280TS pressure sensor has similar outline, installation dimension and sealing methods as the general MPM280 pressure sensor. The sensor is sealed by a FKM O-ring.

Applications

Industrial process control
Level measurement
Gas, Liquid pressure measurement
Pressure meter
Pressure calibrator
Liquid pressure system and switch
Refrigeration equipment and Air
conditioner
Aviation and Navigation inspection

Electrical Performance

Power supply: ≤2.0mA DC
Electrical connection: φ0.5mm Kovar pin or 100mm silicon rubber flexible wires
Common mode voltage output: 50% of input (typ.)
Input impedance: 3kΩ~8kΩ
Output impedance: 3.5kΩ~6kΩ
Response (10%~90%): <1ms
Insulation resistor: 100MΩ@100V DC
Overpressure: 2 times FS or 1100bar(min. value is valid)

Construction Performance

Diaphragm: Tantalum
Pressure leading tube: Stainless steel 316L
Pin: Kovar
O-ring: FKM
Net weight: ~23g

Environment Condition

Shock: No change at 10gRMS,(20~2000)Hz
Impact: 100g, 11ms
Media compatibility: The gas or liquid which is
compatible with construction material and FKM

Basic Condition

Media temperature: (25±1)°C
Environment temperature: (25±1)°C
Shock: 0.1g (1m/s2) Max
Humidity: (50±10)%RH
Local air pressure: (0.86~1.06)bar
Power supply: (1.5±0.0015)mA DC
