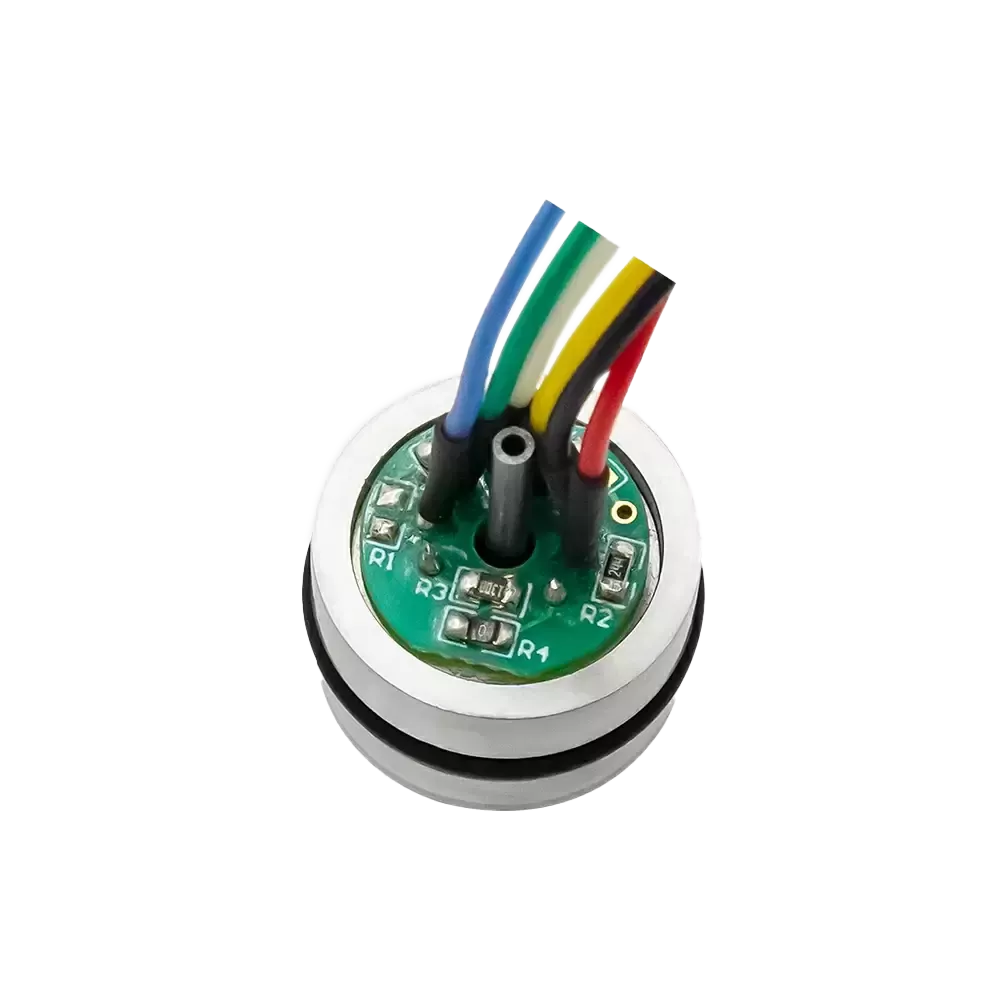

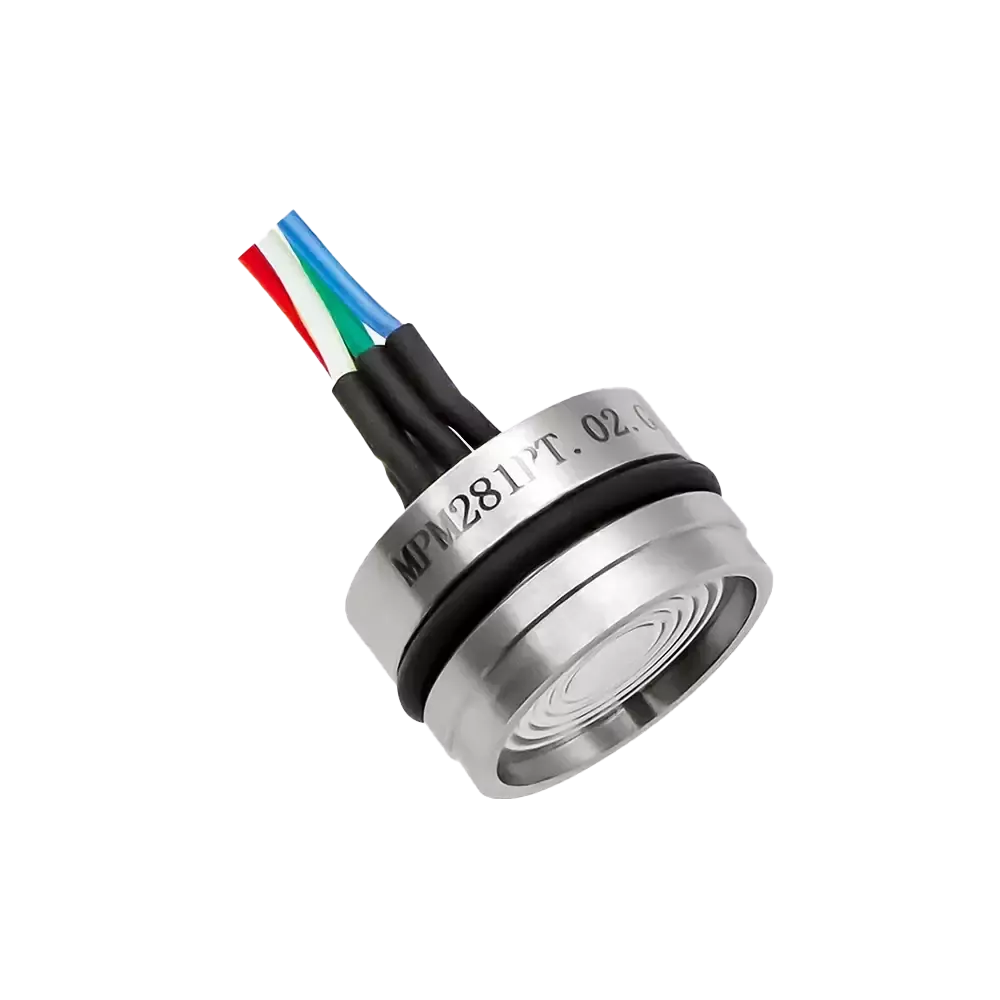

MPM281PT Pressure and temperature sensor module

---

Key features

• Temperature and pressure integration
• Stainless steel 316L shell
• Diameter Ф19mm
• Highly integrated structure
• High stability and high precision imported diffused silicon chip

---

About the MPM281PT Pressure and temperature sensor module

The MPM281PT Pressure and Temperature Sensor is a high-stability measuring device featuring isolated construction and precise temperature compensation. Encased in a robust stainless steel 316L housing with a diameter of 19mm, it utilizes a highly stable and reliable silicon die along with PT100 or PT1000 temperature probes to deliver accurate pressure and temperature measurements.

The sensor incorporates a precision-calibrated compensation circuit that provides temperature compensation and zero-point deviation correction across a wide temperature range. Pressure is accurately transmitted to the sensor chip through an isolation diaphragm and internal medium, enabling precise conversion of pressure into electrical signals. Additionally, the built-in platinum resistor measures the temperature of the medium, allowing simultaneous monitoring of both pressure and temperature.

The MPM281PT undergoes strict inspection and screening on an automated production line, ensuring excellent reliability and long-term stability. This sensor is ideal for industrial applications requiring integrated pressure and temperature measurement.

Features

• Pressure range: 0bar~0.35bar…1000bar
• Gauge, Absolute, Sealed gauge
• Pressure and Temperature dual output
• Temperature error ±0.5℃
• Φ19mm standard OEM pressure sensor
• Long-term stability ± 0.1%FS/Year

Applications

• Industrial process control
• Level measurement

• Gas, liquid pressure measurement

• Pressure checking meter

• Liquid pressure system and switch

• Cooling equipment and Air conditioning
  systems
• Aviation and Navigation inspections
• Medical oxygen pressure measurements

Electrical Performance

• Power supply: ≤2.0mA DC
• Electrical connection: Ф0.5mm Kovar pin or 100mm silicon
  rubber flexible wires
• Common mode voltage output: 50% input (typ.)
• Input impedance: 2kΩ~8kΩ
• Output impedance: 3.5kΩ~6kΩ
• Response (10%~90%): <1ms
• Insulation resistor: 100MΩ@100V DC
• Overpressure: 2 times FS or 1100bar(min. value is valid)

Construction Performance

• Diaphragm: Stainless steel 316L
• Housing: Stainless steel 316L

• Pressure leading tube : Stainless steel 316L

• Pin: Kovar

• O-ring: FKM

• Net weight: ~16g

Environment Condition

• Shock: No change at 10gRMS, (20~2000)Hz
• Impact: 100g,11ms

• Media compatibility: The gas or liquid which is
  compatible with stainless steel and FKM

Basic Condition

• Media temperature: (35±1)℃
• Environment temperature: (35±1)℃

• Shock: 0.1g (1m/s2) Max
• Humidity: (50±10)%RH

• Local air pressure: (0.86~1.06)bar

• Power supply: (1.5±0.0015)mA DC

---
