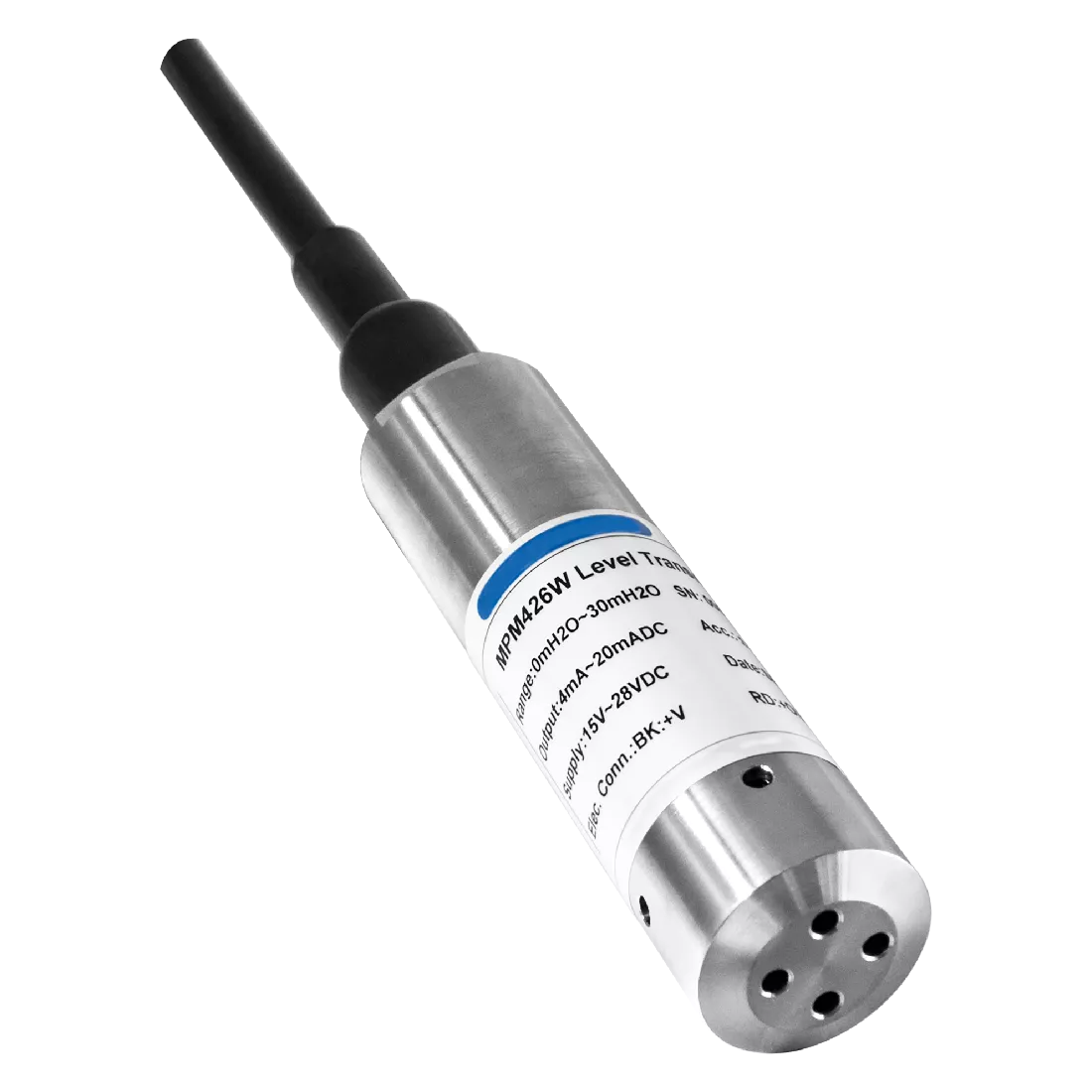

MPM426W Submersible Level Transmitter
highly reliable, submersible level transducer for liquid media level measurement
Key features
- Full sealed stainless steel construction for submersible part; sensor and amplifier circuit are all in the sealed housing, protection class IP68
- Waterproof Junction Box is optional to ease wiring; protection class IP65
- Removable top stainless steep cap; Prevent diaphragm damage and ease cleaning
- Product is issued CE Certificate
- Product is National Patent Product, patent No.ZL00226955.4 and ZL2013 3 0060430.9
- Explosion-proof product conforms to Exia Ⅱ CT6 Ga of Standard GB3836.4; Ex-proof Certificate is issued
- Ship-use product conforms to CCS Rules of Classification of Sea-going Steel Ships (2018); Ship-use Certificate is issued.
About the MPM426W Submersible Level Transmitter
The MPM426W uses a high performance pressure sensor as a sensing element, which can measure liquid static pressure that is positive proportional to level depth precisely, and transform pressure signals into standard current/voltage signals output by amplifier circuit to measure accurate level depth. The product has high accuracy, compact size, easy installation, can be submersible into the liquid directly to measure level from transmitter bottom to the liquid surface. It can be widely used for water and level measure and control of petroleum, chemicals-industry, power station, city water supply and drainage and hydrology, etc.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | +0.25%FS(typ.) +0.5%FS(max.) |
| Ex-proof class | Exia Ⅱ CT6 Ga |
| Load (Ω) | <(U-15) /0.02A < |
| Operation temperature | -10℃ ~70℃ ; -10℃ ~60℃ (Exia) |
| Output signal | l 4mA~20 mA DC |
| Overpressure | 1.5 times FS |
| Power supply | 15V~28V DC(Intrinsic safe version is supplied through safe barrier) |
| Production | -20℃ ~85℃ |
| Protection | IP68 (sensor part); IP65 (connection box) |
| Range | 1, 2, 5, 10, 20, 50, 100, 200 mH2O |
| Stability error | +0.1%FS(typ.) +0.2%FS(max.) range>10mH2O +10mmH2O(typ.) +20mmH2O(max.) range≤10mH2O |
| Storage temperature | -20℃ ~85℃ |
| Temperature drift | ℃ Rang>10mH2O 0.005(typ.) 0.01(max.) 0.02(max.) Range≤10mH2O 0.01(typ.) 0.02(max.) 0.02(max.) Range≤5mH2O 0.015(typ.) 0.03(max.) 0.02(max.) Range≤2mH2O 0.025(typ.) 0.05(max.) 0.02(max.) |
| Transmitting | 2 wire |
