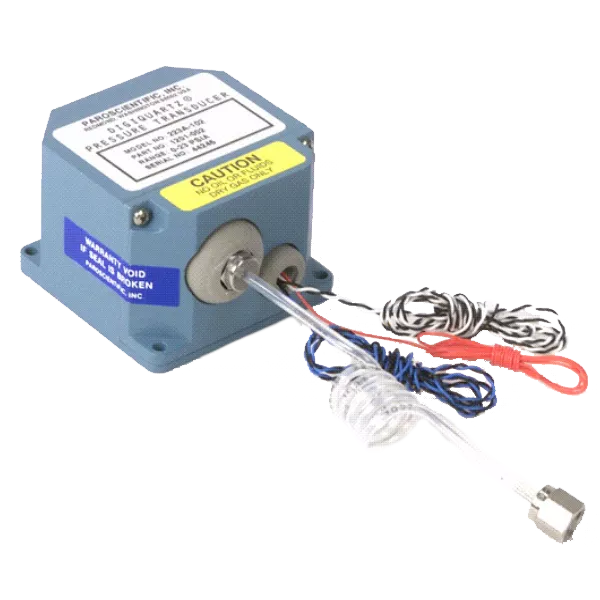

2000 Ultra high-precision pressure sensor
Absolute and gauge pressure transducers
Key features
- 0.01% Accuracy
- 0.0001% Resolution
- Frequency Outputs
- Low Power Consumption
- NIST Traceable Calibration
- High Stability and Reliability
- On-Board Application Memory
- ISO 9001:2000 Quality System
About the 2000 Ultra High-Precision Pressure Sensor
Resolution of better than 0.0001% and typical accuracy of 0.01% are achieved even under harsh environmental conditions. Superior resolution and accuracy comparable to the primary standards make the Digiquartz® Transducers essential for a variety of application areas where high resolution, accuracy, reliability, ruggedness, long-term stability, low power consumption and low cost of ownership are important requirements.
Other features 2000
- Fully Calibrated and Characterized
- On-Board Coefficient Storage (DDS)
Applications 2000
- Metrology
- Hydrology
- Aerospace
- Meteorology
- Oceanography
- Laboratory Standards
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 0.01% |
| Measurement range | absolute: 0 - 1 bar to 0 - 34.5 bar, gauge: 0 - 0.1 bar to 0 - 13.8 bar |
| Output | Frequency |
| Pressure type | absolute, gauge |
| Supply voltage | 5 - 16 VDC |
