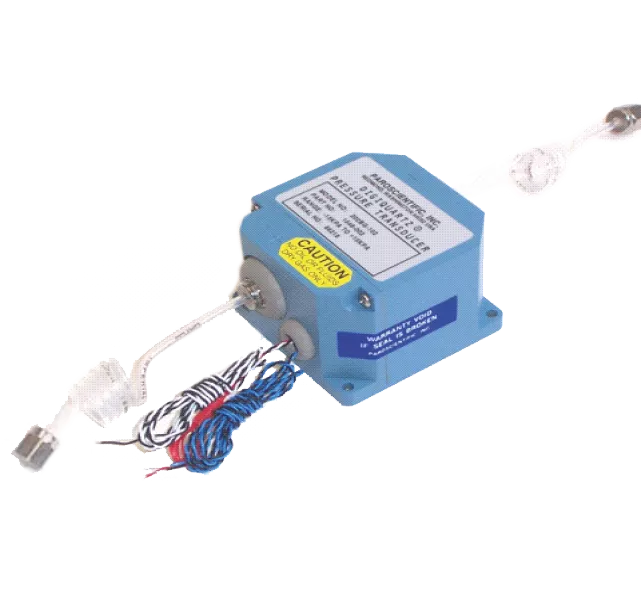

202BG Ultra high-precision pressure sensor

Low range bi-directional gauge pressure transducer


Key features

  • Frequency Outputs
  • 0.01% Typical Accuracy
  • Parts-per-billion Resolution
  • Low Power Consumption
  • High Stability and Reliability
  • On-Board Coefficient Storage
  • On-Board Application Memory

About the 202BG Ultra High-Precision Pressure Sensor

Parts-per-billion resolution and typical accuracy of 0.01% are achieved even under harsh environmental conditions. Digiquartz® Transducers are essential for a variety of application areas where high resolution, accuracy, reliability, ruggedness, long-term stability, low power consumption and low cost of ownership are important requirements.

The remarkable performance of these transducers is achieved through the use of a precision quartz crystal resonator whose frequency of oscillation varies with pressure induced stress. A quartz crystal temperature signal is provided to thermally compensate the calculated pressure and achieve high accuracy over a broad range of temperatures. The transducers include integral shock protection to withstand extremely high acceleration, shock, and vibrational loads.

Our quality management system ensures the consistency of our products and processes, from design and development through to manufacture, calibration, testing and maintenance. Our quality system and commitment to excellence ensures our customers receive superior products and services. We offer an industry-leading five-year limited warranty on all Digiquartz® transducers, with the first two years covered 100%. Free software for installation, configuration, sampling, display, data logging and plotting is included. All Digiquartz® transducers come with a five-year limited warranty, with the first two years 100% covered.

Other features 202BG

  • fully Calibrated and Characterized
  • NIST Traceable Calibration
  • CE Compliant

Applications 202BG Ultra High-Precision Pressure Transducers

  • Metrology
  • Aerospace
  • Oceanography
  • Hydrology
  • Meteorology

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy 0.01%
Measurement range - 0.15 bar to + 0.15 bar
Output Frequency
Pressure type gauge
Supply voltage 5 - 16 VDC
