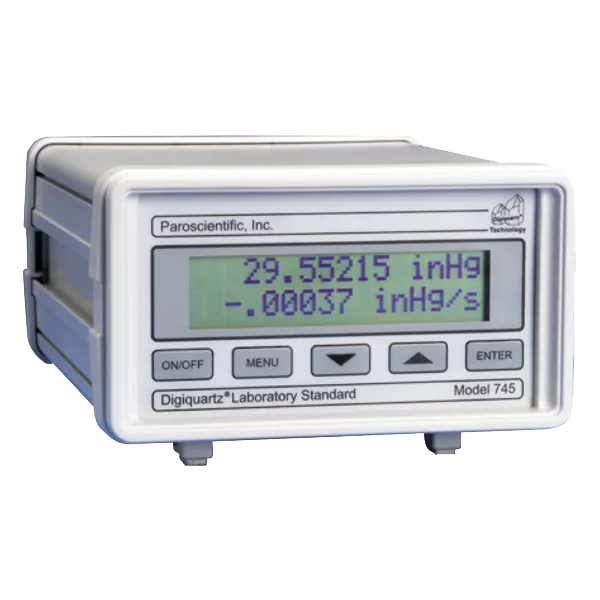

745 High accuracy pressure standard
Portable transfer standards
Key features
- Intuitive front panel menu system
- Rack or panel mount capability
- Enhanced RS-232 command set
- 110 V or 220 V AC adapter power
- Multiple remote display capability
- Free configuration and logging software
- 20 hours battery operation (4 AA size)

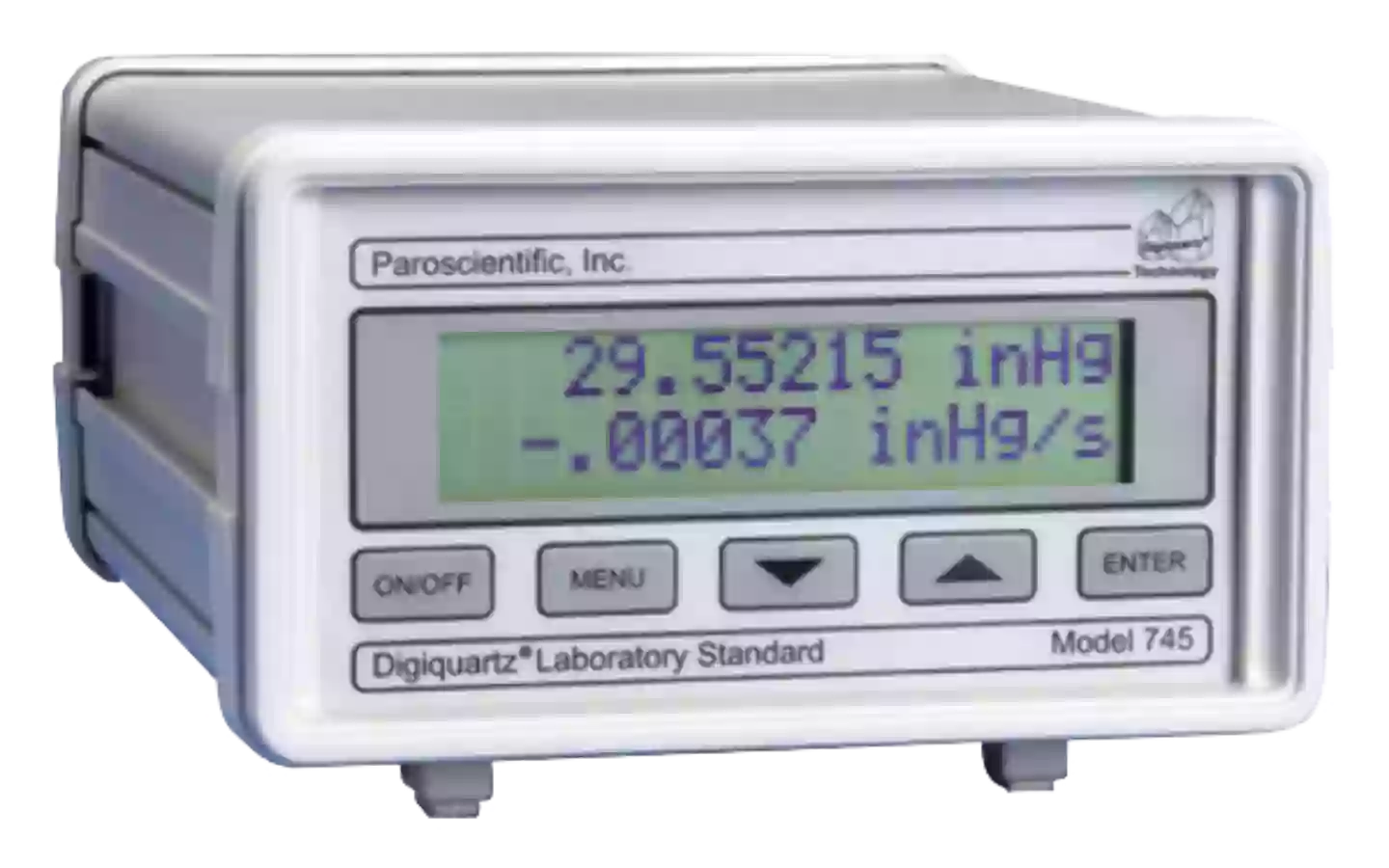

About the 745 High Accuracy Pressure standard
The Model 745 Portable Transfer Standards provide the highest accuracy pressure measurements for laboratory and metrological applications. Digiquartz® Transducers cover 25 absolute and gauge pressure ranges up to 40000 psi (276 MPa) with unsurpassed accuracy, reliability and stability. The new, simple, intuitive front-panel user interface and versatile functionality with the rear-panel RS-232 computer interface make the Model 745 the best choice for high performance pressure calibrations.
Other features 745
- Two-line display with menu selectable functions:
Taring, Engineering units, Pressure bar graph, Sensor temperature, Password protection, Rate of pressure change, Resolution and sampling speed, Adjustable number of display digits, User choice of stored or external text
Applications 745 Pressure standard
- Metrology
- Aerospace
- Meteorology
- Oceanography
- Energy Exploration
- Reference Barometers
- Laboratory Instrumentation
Quality and Standards 745
- CE marked
- NIST traceable
- High stability and reliability
- Easy installation and low maintenance
New version of DQI3 Digiquartz Interactive Software
Prior to installing this newer version, we suggest any currently installed versions first be removed from the PC.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 0.008% |
| Measurement range | absolute: 0 - 1 bar to 0 - 2760 bar, gauge: 0 - 1 bar to 0 - 13.8 bar |
| Output | RS - 232 [6 - 25 VDC] |
| Pressure type | gauge, absolute |
