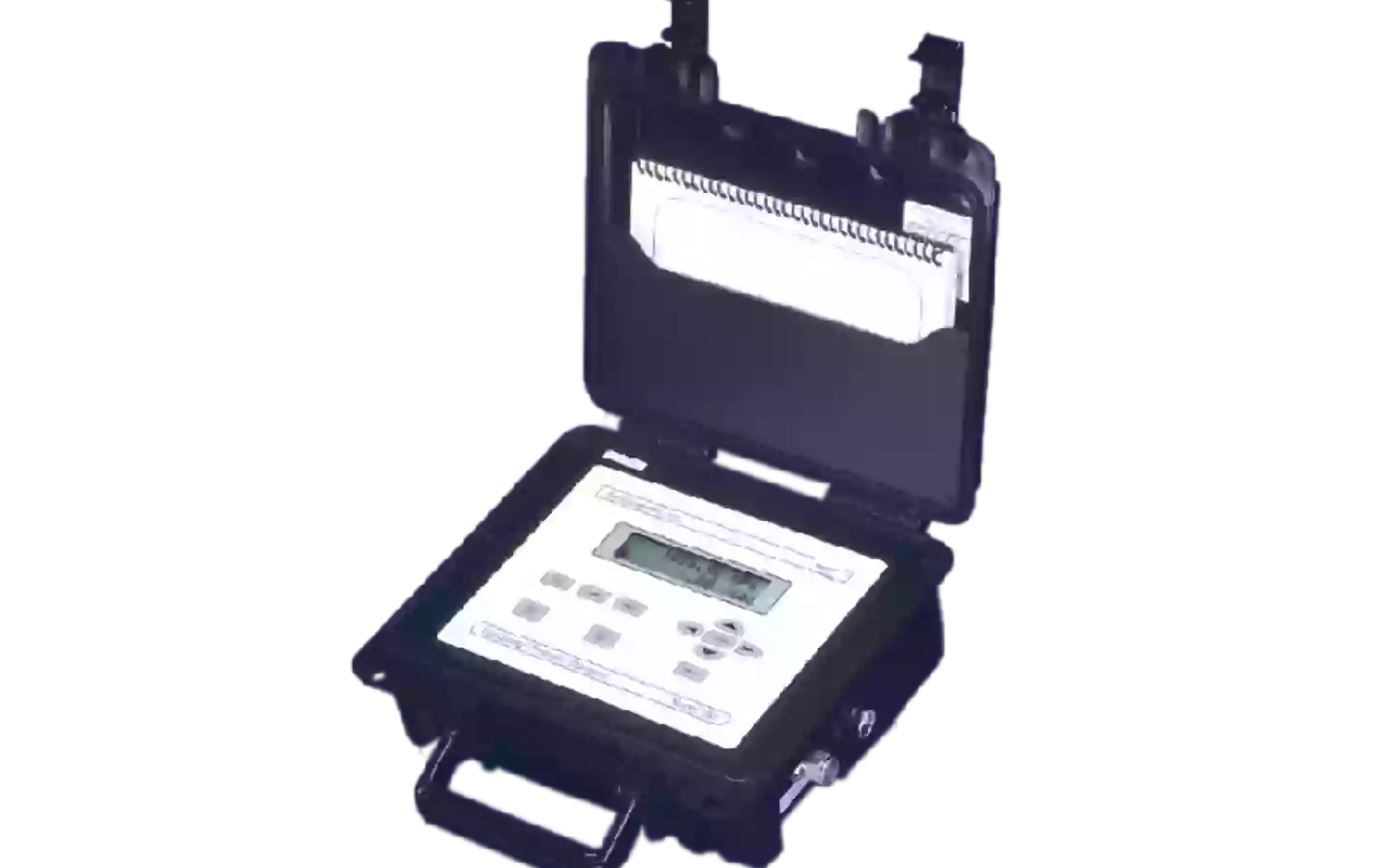

765-16B Portable barometric standard
Accurate, reliable and stable barometric pressure measurements
Key features
- Free configuration and logging software
- Easy upgrades to embedded software
- High and low pressure alarm points
- Barometric functions:
-Altimeter Setting, -Density Altitude,
-Field Pressure, -Pressure Altitude,
-Station Pressure, -Q Signals – QNH, QFE,
-Sea-Level Pressure, -WMO Tendency Codes - Internal data logging - over 390000 data points
Edit data via the front panel,
Remaining memory display,
Burst mode above selected threshold
About the 765-16B Portable barometric standard
The Model 765-16B is the best choice for accurate, reliable and stable barometric pressure measurements. The integral Digiquartz® Barometers have been extensively used in field transfer standards for ASOS and AWOS verification, meteorological measurement systems, altimeter setting indicators, air data test sets, and other critical applications such as GPS-Meteorology, infrasonic research, atmospheric wave and turbulence detection, and geophysical studies.
Key features 765-16B
- Simple, intuitive front panel menu system:
Tare, Hold and Programmable Fast Key, Front panel data entry and display, Password-protected menu system - Two-line backlit display– Menu selectable functions:
Taring, Engineering units, Sensor temperature, Resolution and sampling speed, Maximum and minimum pressure, Average pressure, rate, trend and scatter functions - Enhanced remote control and command -User-defined outputs, USB and RS-232 interfaces
- Internal rechargeable battery or AC power, 100 - 240 VAC universal power adapter, Battery status LED and display indicator, 150 hours rechargeable battery operation
Applications 765-16B
- Meteorology
- Avionics Testing
- Oceanography
- Process Control
- Transfer Standards
- Airfield Operations
- Weather Monitoring
- Infrasonic Applications
New version of DQI3 Digiquartz Interactive Software
Prior to installing this newer version, we suggest any currently installed versions first be removed from the PC.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | 0.08 mbar |
| Measurement range | 0 - 0.5 bar to 0 - 1.1 bar |
| Output | RS - 232 [100 - 240 VAC, internal battery] |
| Pressure type | absolute |
