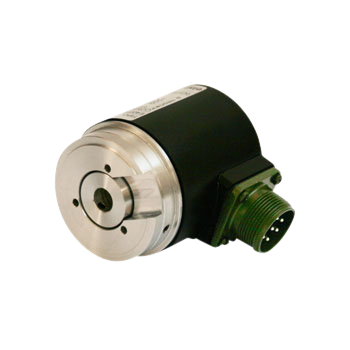

E400 Incremental Rotary Encoder
With flange diameter 53.5 mm
E400 - Hollow Shaft Encoders
Incremental rotary encoders E400/E401 (flange diameter 58 mm) and E470/E471 (flange diameter 72 mm) can be coupled directly to any motorshaft by means of a joint. Available with or without zero pulse. Their construction technology employs a compact and innovating electronic circuitry granting the best performance at a contained price level
Features E400
- Pulses per revolution: 2 -36000
- Pulse code Incremental
- Joint hole diameter: 6 or 8 or 10 mm
- Protection degree: IP64
- Operating temp.: -10 ÷ +70ºC
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Absorption | 30÷80 mA max |
Case material | RE aluminium / E ABS |
Connections | Axial or radial cable 3 m long /1 m for line driver output Axial or radial MS connector, 7-pin/10- pin for line driver output* |
Electronic outputs | Push-pull, NPN open collector, 5Vdc or 8/24Vdc line driver signals protected against short circuits |
Inertia | ≤25g cm2 |
Max frequency | 100/200 KHz |
Max load | 80N axial / 100N radial |
Operating temperature | -10 ÷ 70°C |
Output signals | Two square waves 90° ±15° out of phase – Zero pulse width: 90°±15° |
Protection degree | IP64 |
Pulse code | Incremental |
Pulses per revolution | 2 ÷ 12500 |
Revolutions/minute | 6000 continuos/10000 temporary |
Shaft material | AISI 303 steel |
Shaft/joint hole | 6, 8, 10mm |
Shock resistace (11 ms) | 50 G |
Starting torque | ≤0,8 Ncm |
Stocking temperature | -20 ÷ 80°C |
Supply voltage | 5Vdc or 8/24Vdc - protection against polarity reversal |
Vibration resistance (10÷2000 hz) | 100 m/sec2 |
Zero reference pulse | one pulse/revolution |
