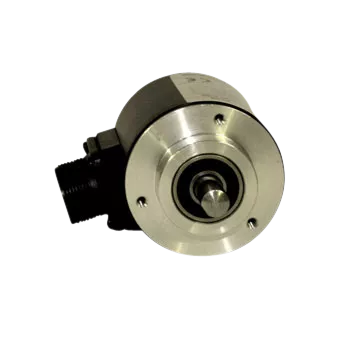

EP - REP Incremental Rotary Encoder

Programmable incremental encoders series

EP/REP - Programmable Magnetic Incremental Encoders

Pulses per revolution: 8 - 2048
Pulse code: Incremental
Output signals: push/pull or line driver
Shaft Ø: 6, 8, 9.52 or 10 mm
Protection degree: IP64 (optional IP65)
Operating temp.: 0 ÷ 70°C

Features EP/REP

Magnetic incremental encoders
Programmable ppr number
Zero pulse
Several configurations available
Accurate, strong and reliable

Incremental encoders EP/REP ppr no. ranges from 8 to 2048. The ppr no. is easily set by the user directly via PC; the programming kit supplied with the encoder includes the USB cable ended with the encoder connector, and the CD with the programming software.

EP/REP operate according to the magnetic principle, and offer excellent performances in terms of resistance to vibrations and shocks, acceleration, speed and protection.
The different mechanical versions can meet every type of application requirement; each mechanical type is available with ABS plastic case – series EP with push-pull output – or metal case – series REP with line driver output.

Type EP

ABS plastic case
Push-pull electronic output
7-pin MS connector axial or radial outlet

Type REP

Aluminium case
5 Vdc or 5/28 Vdc line-driver output
12-pin Connei connector axial or radial outlet

Mechanical versions

Series EP/REP521:

Round flanged, Ø 58 mm,
Servo coupling
Ø 50 mm centering mask
Shaft Ø: 6, 8, 9.52 or 10 mm

Series EP/REP511:

Round flanged, Ø 58 mm
Servo coupling
Ø 31.75 mm centering mask
Shaft Ø 6, 8, 9.52 or 10 mm

Series EP/REP621:

Square flanged 63.5 x 63.5 mm
Centering mask Ø 31.75 mm
Shaft Ø: 6, 8, 9.52 or 10 mm

Series EP/REP541:

Round flange Ø 58 mm, servo coupl.
Centering mask Ø 36 mm
3 M4 holes at 120° on Ø 48 mm
Shaft Ø 6, 8, 9.52 or 10 mm

Series EP/REP651:

Square flange 63.5x63.5 mm
Centering mask Ø 50 mm
Shaft Ø 6, 8, 9.52 or 10 mm

Series EP/REP411:

Round flanged,
Ø 63 mm Hollow shaft for direct mounting to a motor shaft,
Hole diameter 8, 10, 12, 14 or 15 mm

Series EP/REP401:

Round flange,
Ø 58 mm,
Fixing holes on Ø 30 mm
Joint for direct mounting to a motor
Shaft diameter 6, 8 or 10 mm

Series EP/REP471

Round flange,
Ø.72 mm,
Fixing holes on Ø 63.5
Joint for direct mounting to a motor
Shaft diameter 6, 8 or 10 m
