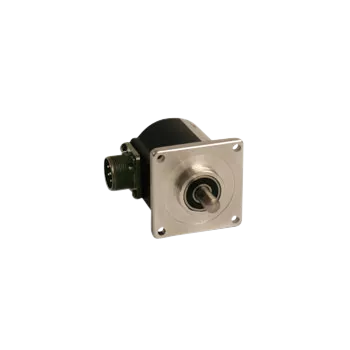

REV Incremental Rotary Encoder
Ensures high performances in terms of reading accuracy and signal stability
REV - Incremental encoders
- Pulses per revolution: 1000 - 36000
- Pulse code: Incremental
- Shaft diameter: 6, 8, 9.52 or 10 mm 11 mm
- Protection degree: IP64, optional IP65
- Operating temp.: -30 ÷ +70°C
Features REV
- High resolution
- Different mechanical versions
- Metal case
- Glass disc
- Strong, accurate, reliable
Mechanical versions
Series REV520:
- Ø 58 mm round flange
- Servo coupling
- Ø 50 mm centering mask
- Shaft Ø 6, 8, 9.52 or 10 mm
Series REV510
- Ø 58 mm round flange
- Servo coupling
- Ø 31.75 mm centering mask
- Shaft Ø 6, 8, 9.52 or 10 mm
Series REV540
- Ø 58 mm round flange
- Servo coupling
- Ø 36 mm centering mask
- 3 M4 holes 120° on Ø 48 mm
Series REV530
- Flange type RE0444
- Shaft Ø 11 mm
- Aluminium case
Series REV620:
- 63.5x63.5 square flange
- Ø 31.75 mm centering mask Shaft Ø
- 6, 8, 9,52 or 10 mm
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Case | Aluminium |
| Connections outlet | Axial or radial connector equipped with flying part Axial or radial cable - length 3 m (1 m for line driver output) |
| Electronic output | Push-pull, 5Vdc or 8/24Vdc line driver signals protected against short circuits |
| Inertia | ≤25 g cm2 |
| Max frequency | 200 KHz |
| Max. load | 80 N axial / 1000 N radial |
| Output code | Two square waves 90° ±15° out of phase – Zero pulse width: 90°±15° |
| Power consumption | 50/70 mA max |
| Resolutions/minute | 6000 |
| Shaft | Stainless steel |
| Shock resistance (11 ms) | 50 G |
| Starting torque | ≤ 0.8 Ncm |
| Stocking temp. | -30 ÷ +85°C |
| Supply voltage | 5Vdc or 8/24Vdc - protection against polarity reversa |
| Vibrations resistance (10÷2000 hz) | 100 m/sec |
| Weight | 500 g ca. |
| Zero pulse | One pulse each resolution |
