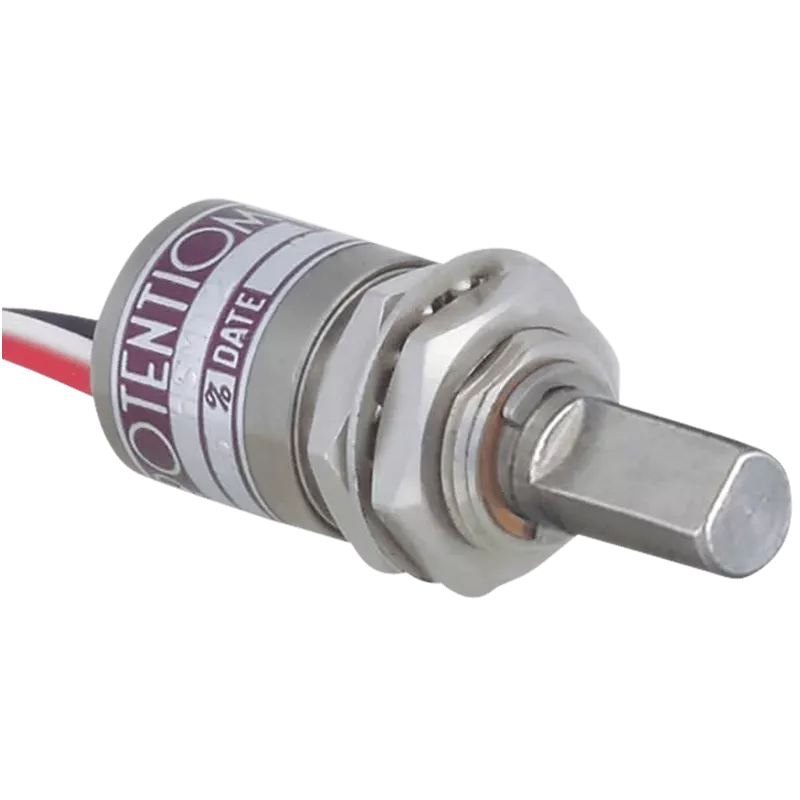

HSM12 Rotary Hall Effect Sensor
1-turn Contactless Potentiometer Hall Effect IC Type (Bushingmount)
Key features
- Mechanical rotating angle: 360° (Endless)
- Effective electrical angle: ±45° (90°)
- -40°C~+105°C operating temperature
- Approx. 7mA current consumption
- High performance, with EMS durability
About the HSM12 Rotary Hall Effect Sensor
The HSM12 is a small sized long-life single turn potentiometer. This Hall Effect IC type has a shaft diameter of 6mm and a robust housing case. Excellent in EMC endurance.
Contactless potentiometers using hall effect IC are low-cost types with high performance. The contactless inductance type potentiometers have a high performance with EMS durability. The contactless potentiometer has very long life expectancy and excellent resistance to vibration due to its contactless element, which can meet many types of applications in different industrial field.
Special specifications available
- Special effective electrical angle (Possible to meet with from ±10° to ±45° by 5° step as requested)
- Special machining on the shaft
- Special output
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Applied voltage | 5V±10%D.C. |
| Current consumption | Approx. 7mA |
| Drift at center position | Within ±0.5%Vout/FS |
| Effective electrical angle | ±45° (90°) |
| Effective output | Approx. 10%~Approx. 90%Vin FS(FS=90°) |
| Independent linearity tolerance | ±1.5%FS(FS=90°) |
| Load resistance | 10 KΩ min. |
| Mass | Approx. 15g |
| Mechanical rotating angle | 360° (Endless) |
| Operating temperature range | -40°C~+105°C |
| Output temperature characteristics | Within ±2.5%Vout/FS |
| Storage temperature range | -40°C~+105°C |
