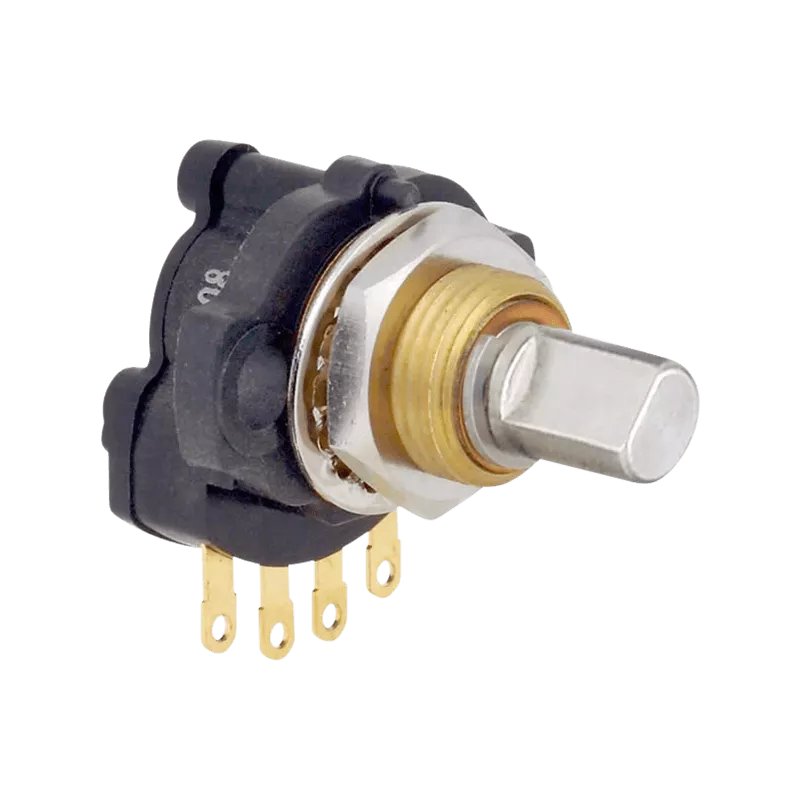

HSM18 Rotary Hall Effect Sensor
Hall effect IC - Lug Terminal Type or Leadwire Type
Key features
- Independent linearity tolerance: ±1.5% FS
- Mechanical rotating angle: 360º (Endless)
- Effective electrical angle: 45º (Endless)
- -40°C ~ +105°C Operating temperature
- Mass: Approx. 15g
About the HSM18 Rotary Hall Effect Sensor
The HSM18 is a small sized long-life single turn potentiometer. This Hall Effect IC type is available with flange, dual output and available as lug terminal type or leadwire type.
Standard model numbers
- Model HSM18E (Lug terminal type)
- Model HSM18EL: Leadwire type, combined type with bushingmount and flange-mount.
Special specifications available
- Special effective electrical angle (Possible to meet with from ±10° to ±45° by 5° step as requested)
- Special machining on the shaft
- Special output
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Drift at center position | Within ±0.5%Vout/FS |
| Effective electrical angle | 45º (Endless) |
| Effective output | Approx. 10% Approx. 90%Vin FS(FS=90°) |
| Independent linearity tolerance | ±1.5% FS |
| Load resistance | 10 KΩ min. |
| Mass | Approx. 15g |
| Mechanical rotating angle | 360º (Endless) |
| Operating temperature range | -40°C~+105°C |
