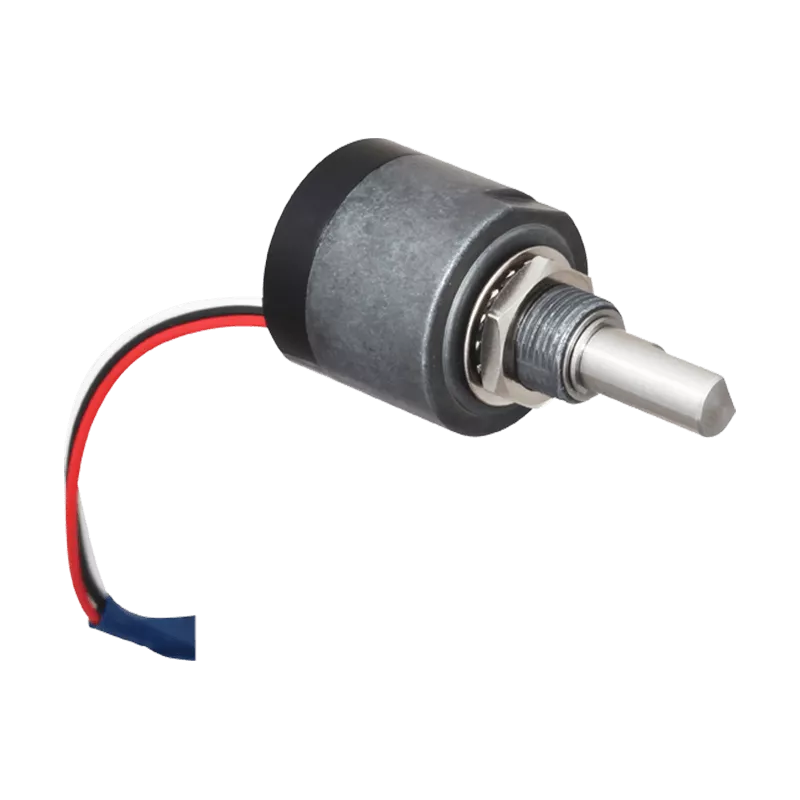

HSM22M Multi-turn Potentiometer Hall Effect IC
Long life, various special output is available
Key features
- Mechanical rotating angle: 360º (Endless)
- Effective electrical angle: 3600º ±7º
- The 3600° linear output is achieved with this compact size (22.5F).
- Independent linearity tolerance: ±0.5% F.S.
- -40ºC ~ +85ºC Operating temperature
About the HSM22M Multi-turn Potentiometer Hall Effect IC
This multi-turn hall effect sensor has a very long life time (20 times longer than the 10 turn, contact type models). This 10 turn type is developed with hall effect IC potentiometer. Various special outputs are available.
Special specifications available
- Special effective electrical angle (90°, 180°, 270° - arbitrary angles)
- Special machining on the shaft
- Special output (Cross, parallel, dual independent output)
- Special applied voltage (12V, 24V)
- PWM output
- Low current consumption in slow mode
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Dual output & dual independent output: Max. 32mA | |
| Applied voltage | 5V ± 10% D.C. |
| Backlash | Within 10º |
| Current consumption | Single output: Max 16mA |
| Dielectric strength | 1 minute at 500 V.A.C. |
| Effective electrical angle | 3600º ±7º |
| Effective output | 5%±3%~95%±3%% Vin |
| Independent linearity tolerance | ±0.5% F.S. |
| Index protection | IP50 (IP65 for the incorporated PCB part only) |
| Insulation resistance | Over 1000MΩ at 500 V.D.C. |
| Load resistance | 10KΩ min |
| Mass | Approx. 35g |
| Mechanical rotating angle | 360º (Endless) |
| Operating temperature range | -40ºC ~ +85ºC |
| Output temperature characteristics | Within ± 0.3% Vout/FS |
| Rotating torque | Within 5mN • m (within 50gf • cm) |
| Storage temperature range | -40ºC ~ +85ºC |
