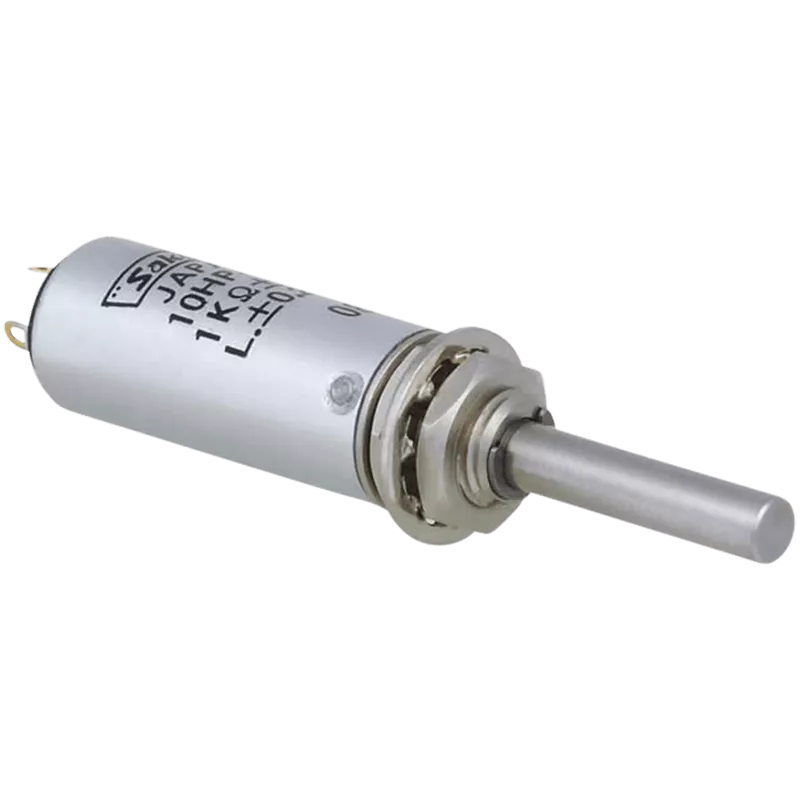

10HP Multi-turn Potentiometer
World's smallest 10-turn Potentiometer (5-turn and 10-turn)
Key features
- Wirewound
- Dimensions (mm) DxL: 10.5×19.2 / 10.5×25.5
- Resistance range (ohm): 100Ω -20kΩ / 100Ω -50kΩ
- Linearity (±%): 0.35 to 0.2 / 0.25 to 0.1
- Mechanical travel (+10° 0°): 1,800 +30° 0° /
3,600 +30° 0° - Electrical travel (±5°): 1,800 / 3,600
About the 10HP Multi-turn Potentiometer
The Multi-turn Potentiometer 10HP is world's smallest 10-turn potentiometer. The potentiometer is available in 5-turn models and 10-turn models.
Features Multi-turn potentiometer 10HP-5
- Wirewound
- Dimensions (mm) DxL: 10.5×19.2
- Standard resistance range (ohm): 100Ω -20kΩ
- Independent linearity (±%): 0.35 to 0.2
- Mechanical travel (+10° 0°): 1,800 +30° 0°
- Electrical travel (±5°): 1,800
Features Multi-turn potentiometer 10HP-10
- Wirewound
- Dimensions (mm) DxL: 10.5×25.5
- Standard resistance range (ohm): 100Ω -50kΩ
- Independent linearity (±%): 0.25 to 0.1
- Mechanical travel (+10° 0°): 3,600 +30° 0°
- Electrical travel (±5°): 3,600
Special Specifications Available
3turn type (S10HP3), lower resistance values (20Ω, 50Ω), shaft dia. (ø3.175mm) · bushing with inch dimensions, special machining on the shaft, shaft with front and rear extension (rear shaft with 0.8mm dia. and 10mm length).
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| (within 5kΩ): (±0.25%) (±0.15%) | |
| Precision Class: ±0.2% ±0.1% | |
| Dielectric strength | 1 minute at 500 V.A.C. |
| Electrical travel | 360º Xn ±5º (n: No. of turns) |
| Independent linearity tolerance (5-turn 10-turn) | Standard Class: ±0.35% ±0.25% |
| Insulation resistance | Over 100 MΩ at 500 V.D.C. |
| Mass | Approx. 17g (5-turn), Approx. 20g (10-turn) |
| Max. practical resistance value | 50kΩ (5turn), 100kΩ (10turn) |
| Max. torque exerted on fastening the mounting nut to the bushing | Within 1N·m (10kgf·cm) |
| Max. working voltage | 450 V |
| Mechanical travel | 360º Xn + 30º 0° (n: No. of turns) |
| Noise | Within 100O E.N.R. |
| Power rating | 0.5W (5-turn), 1.0W (10-turn) |
| Resist. temp. coefficient of wire | ±20p.p.m./ºC |
| Shaft dia. (mm) | 4 |
| Standard resistance range | 100Ω to 20kΩ (5turn), 100Ω to 20kΩ (10turn) |
| Starting torque | Within 3mN·m (30gf·cm) |
| Stopper strength | Approx. 0.1N·m (1kgf·cm) |
| Total resistance tolerance | Standard Class ±3%(H), Precision Class ±1%(F) |
