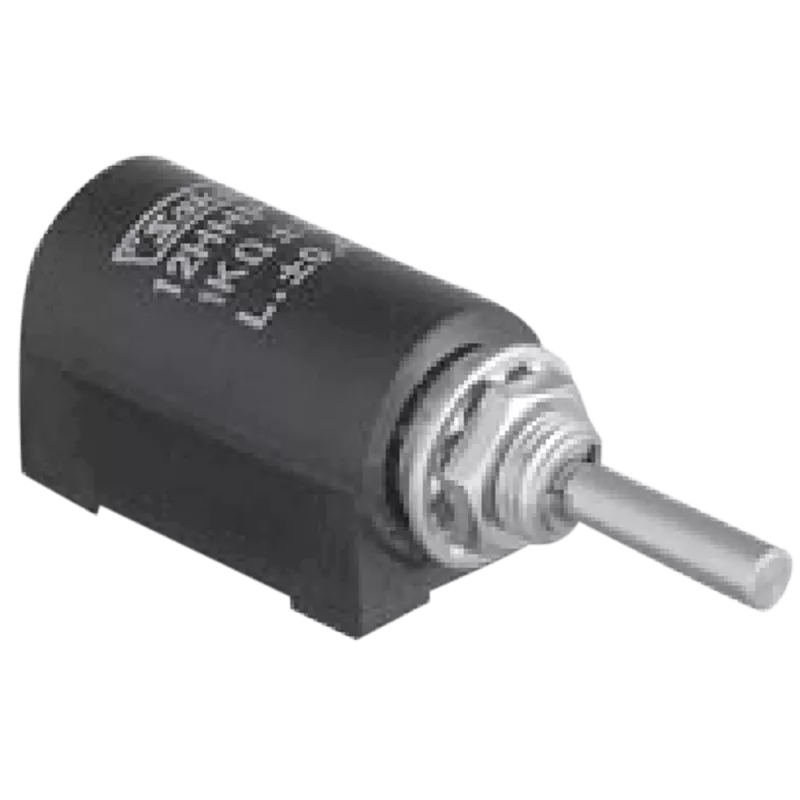

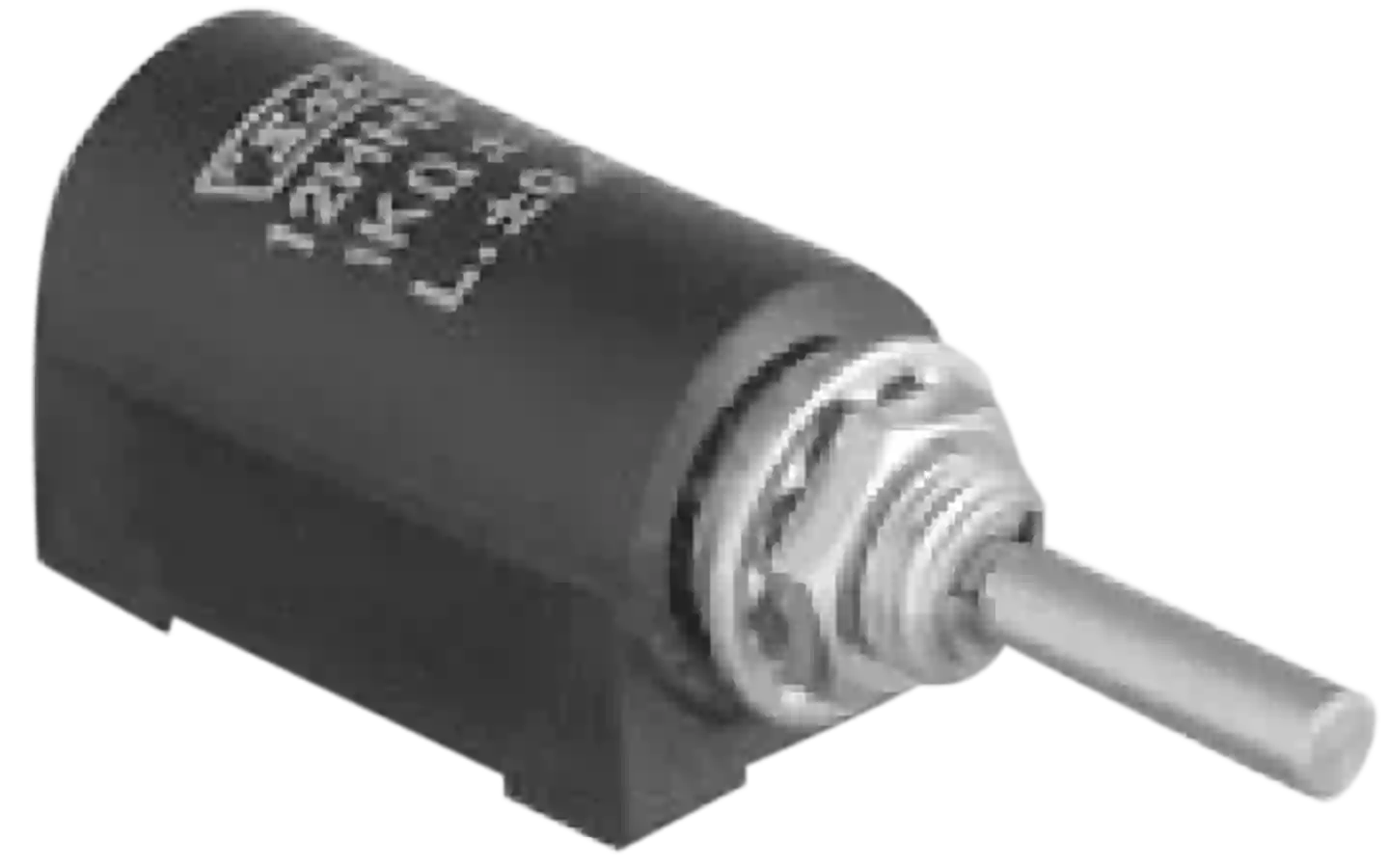

12HHP Multi-turn Potentiometer
Hybrid Potentiometer (Bushingmount) 10-turn
Key features
- Hybrid
- Dimensions (mm) DxL: 13x25.5
- Resolution: Essentially infinite
- Independent linearity (±%): 0.4 to 0.1
- Mechanical travel (+10° 0°): 3,600 +15° 0°
- Electrical travel (±5°): 3,600
About the 12HHP Multi-turn Potentiometer
The 12HHP is a small size, high resolution, long-life potentiometer with an outer diameter of 13mm.
Bushingmount type
- With lug terminals: 12HHP
- With pin terminals for pc board: 12HHP-10P
Servomount type
- 12HHPS-10
Special Specifications Available
5-turn type (S12HHP-5), shaft with front and rear extension (rear shaft with 0.8mm dia. and 10mm length), special machining on the shaft, simple sealed housing (in case of servomount type, the housing length becomes longer by 1.5mm).
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Contact resistance variation | Within 5% C.R.V. |
| Dielectric strength | 1 minute at 1,000 V.A.C. |
| Electrical travel | 3,600º ±5º |
| Independent linearity tolerance | Standard Class ±0.4%, Precision Class ±0.1% (±0.2% in case of within 5kΩ) |
| Insulation resistance | Over 1,000MΩ at 500V.D.C. |
| Mass | Approx. 109 |
| Max. practical resistance value | 100kΩ |
| Max. torque exerted on fastening the mounting nut to the bushing | Within 0.8mN·m (80kgf·cm) |
| Max. working voltage | 450V |
| Mechanical travel | 3,600º +15º |
| Output smoothness | Within 0.05% against input voltage |
| Power rating | 1.0 W |
| Resistance temp. coefficient | ±100p.p.m./ºC |
| Resolution | Essentially infinite |
| Shaft dia. (mm) | 3 |
| Standard resistance values | 2k, 5k, 10k, 20k, 50k (Ω) |
| Starting torque | Within 3mN·m (30gf·cm) (Bushingmount type), Within 2mN·m (20gf·cm) (Servomount type) |
| Stopper strength | Approx. 0.15N·m (15kgf·cm) |
| Total resistance tolerance | Standard Class ±10%(K), Precision Class ±5%(J) |
