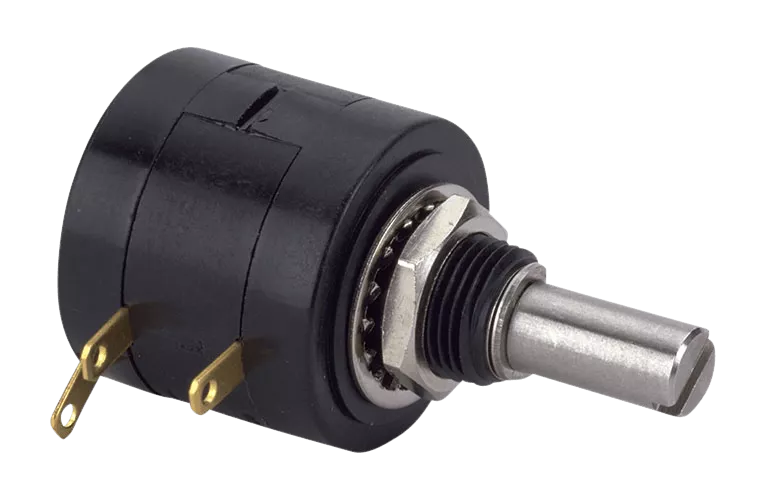

22HHP Multi-turn Potentiometer
Hybrid Potentiometer (Bushingmount) 5-turn and 10-turn
Key features
- Hybrid
- Dimensions (mm) DxL: 22×19
- Resolution: Essentially infinite
- Independent linearity (±%): 0.25 to 0.1
- Mechanical travel (+10° 0°): 3,600
- Electrical travel (±5°): 3,600
About the 22HHP Multi-turn Potentiometer
The 22HHP is a low-cost, high resolution and long life bushingmount potentiometer with an outer diameter of 22mm.
Bushingmount type:
- 5-turn models: 22HHP-5, 22HHP-5M, 22HHP-5E, 22HHP-5N
- 10-turn models: 22HHP-10, 22HHP-10M, 22HHP-10E, 22HHP-10N
Servomount type:
- 5-turn models: 22HHPS-5
- 10-turn models: 22HHPS-10
Special Specifications Available
Shaft with front and rear extension (rear shaft with 6mm dia. and 15mm length), 3-turn type, multi-ganged (available up to 10-gangs), with high torque, special shaft dia. (ø3mm, ø3.175mm, ø4mm, ø5mm, ø6.35mm), special machining on the shaft, with plastic shaft, metal bushing type (22HHPM with anti-rotation pin), simple sealed housing, extra taps (available up to 1 tap only for 10turn), slippingclutch incorporated type (20mN·m~60mN·m).
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Precision Class: ±0.2% ±0.1% | |
| Contact resistance variation | Within 5% C.R.V. (5-turn), Within 3% C.R.V. (10-turn) |
| Dielectric strength | 1 minute at 1,000 V.A.C. |
| Electrical travel | 360º X n ±5º (n: No. of turns) |
| Independent linearity tolerance (5-turn 10-turn) | Standard Class: ±0.35% ±0.25% |
| Insulation resistance | Over 100MΩ at 1,000V.D.C. |
| Mass | Approx. 20g (Bushingmount), Approx. 30g (Servomount) (both 5-turn and 10-turn) |
| Max. torque exerted on fastening the mounting nut to the bushing | Within 1.0N·m (10kgf·cm) (in case of panel thickness with over 2.5mm, the rotating torque may become heavier) |
| Max. working voltage | 500V |
| Mechanical travel | 360º X n (+10º n: No. of turns) |
| Output smoothness | Within 0.05% against input voltage (5-turn), Within 0.015% against input voltage (10-turn) |
| Power rating | 1.0W (5-turn) 2.0W (10-turn) |
| Resistance temp. coefficient | ±100p.p.m./ºC |
| Resolution | Essentially infinite |
| Shaft dia. (mm) | 6 |
| Standard resistance values | 1k, 2k, 5k, 10k, 20k, 50k (Ω) (5turn). 2k, 5k, 10k, 20k, 50k, 100k (Ω) (10turn) |
| Starting torque | Within 5mN·m (50gf·cm) |
| Stopper strength | Approx. 0.9N·m (9kgf·cm) |
| Total resistance tolerance | Standard Class ±10%(K), Precision Class ±5%(J) |
