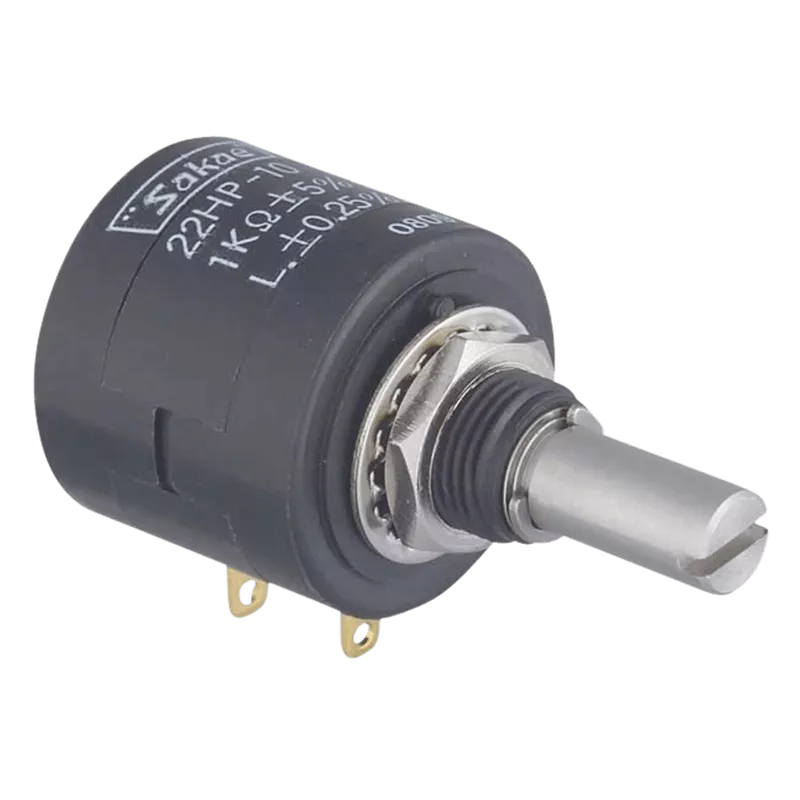

22HP Multi-turn Potentiometer
Wirewound (Busingmount) Low-cost item - RoHS Compliant
Key features
- Wirewound
- Dimensions (mm) DxL: 22×19
- Resistance range (ohm): 100Ω -50kΩ
- Linearity (±%): 0.3 to 0.2
- Mechanical travel (+10° 0°): 1,800
- Electrical travel (±5°): 1,800
About the 22HP Multi-turn Potentiometer
The 22HP is our lowest-cost multi-turn potentiometer with an outer diameter of 22mm. This potentiometer has an international patented snapping-in construction.
Features Multi-turn potentiometer 22HP-5
- Wirewound
- Dimensions (mm) DxL: 22×19
- Standard resistance range (ohm): 100Ω -50kΩ
- Independent linearity (±%): 0.3 to 0.2
- Mechanical travel (+10° 0°): 1,800
- Electrical travel (±5°): 1,800
Special Specifications Available
Shaft with front and rear extension (rear shaft with 6mm dia. and 15mm length), multi-ganged (available up to 10 gangs), with high torque, special shaft dia. (ø3mm, ø3.175mm, ø4mm, ø5mm), special machining on the shaft, with plastic shaft, metal bushing type (22HPM-n with anti-rotation pin), 1, 2, 3, 4, 6, 7 and 8-turn versions are available (these versions have the same outer dimensions, but general specifications are please request us for details), simple sealed housing, slippingclutch incorporated type (20mN·m~60mN·m), extra taps (available up to 1 tap only for 10-turn model), servomount type (same dimensions as 22HHPS-10).
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| (within 5kΩ): (±0.25%) (±0.15%) | |
| Bushing: Glass-filled nylon (for ganged version the bushing is metalbrass without plating) | |
| Housing case: Glass-filled nylon | |
| Precision Class: ±0.2% ±0.1% | |
| Terminals: Gold-plated brass (all terminals can be Fitted with the AMP 110 series faston receptable (2.8x0.5mm) or equivalents | |
| Dielectric strength | 1 minute at 1,000 V.A.C. |
| Electrical travel | 360º Xn ±5º (n: No. of turns) |
| Independent linearity tolerance (5-turn 10-turn) | Standard Class: ±0.3% ±0.25% |
| Insulation resistance | Over 1,000MΩ at 500 V.D.C. |
| Mass | Approx. 20g (both 5-turn and 10-turn) |
| Materials | Shaft: Stainless steel |
| Max. torque exerted on fastening the mounting nut to the bushing | Within 1.0N·m (10kgf·cm) (in case of panel thickness with over 2.5mm, the rotating torque may become heavier) |
| Max. working voltage | 250V |
| Mechanical travel | 360º Xn (+10º n: No. of turns) |
| Noise | Within 100Ω E.N.R. |
| Power rating | 1.0W (5-turn), 2.0W (10-turn) |
| Resist. temp. coefficient of wire | ±20p.p.m./ºC |
| Shaft dia. (mm) | 6 |
| Standard resistance range | 100Ω to 50kΩ (5turn), 100Ω to 100kΩ (10turn) |
| Starting torque | Within 10mN·m (100gf ·cm) |
| Stopper strength | Approx. 0.35N·m (3.5kgf·cm) |
| Total resistance tolerance | Standard Class ±3%(H), Precision Class ±1%(F) |
