25HPS Multi-turn Potentiometer
Wirewound Potentiometer Servomount type
Key features
- Wirewound
- Dimensions (mm) DxL: 25×30.5 / 25×39
- Standard resistance range (ohm): 100Ω -50kΩ / 100Ω -100kΩ
- Independent linearity (±%): 0.3 to 0.2 / 0.2 to 0.1
- Mechanical travel (+10° 0°): 1,800 / 3,600
- Electrical travel (±5°): 1,800 / 3,600
About the 25HPS Multi-turn Potentiometer

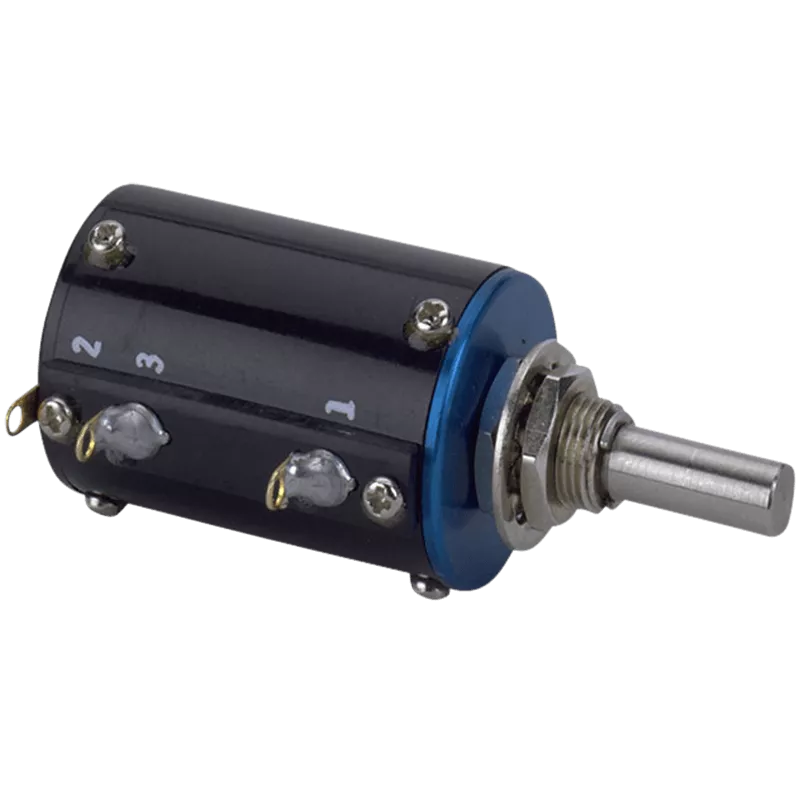

The 25HPS is a servomount precision type multi-turn potentiometer with an outer diameter of 25mm. There are multi shaft and bushing dimensions available.
Features Multi-turn potentiometer 25HPS-5
- Wirewound
- Dimensions (mm) DxL: 25×30.5
- Standard resistance range (ohm): 100Ω -50kΩ
- Independent linearity (±%): 0.3 to 0.2
- Mechanical travel (+10° 0°): 1,800
- Electrical travel (±5°): 1,800
Features Multi-turn potentiometer 25HPS-10
- Wirewound
- Dimensions (mm) DxL: 25×39
- Standard resistance range (ohm): 100Ω -100kΩ
- Independent linearity (±%): 0.2 to 0.1
- Mechanical travel (+10° 0°): 3,600
- Electrical travel (±5°): 3,600
Special Specifications Available
Lower resistance (10Ω, 20Ω, 30Ω), 3turn type (S25HP3), 15turn type (S25HP15), 20turn
type (S25HP20), extra taps (available up 5 taps), multi-ganged (available up to 2 gangs), shaft with front and rear extension (rear shaft with 3mm dia. and 10mm length), shaft dia. (ø3.175mm, ø6.35mm) · bushing with inch dimensions, with a limit-switch adaptor, special machining on the shaft.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| (within 5kΩ): (±0.25%) (±0.15%) | |
| Precision Class: ±0.2% ±0.1% | |
| Dielectric strength | 1 minute at 1,000 V.A.C. |
| Electrical travel | 360º Xn ±5º (n: No. of turns) |
| Independent linearity tolerance (5-turn 10-turn) | Standard Class: ±0.3% ±0.2% |
| Insulation resistance | Over 100 MΩ at 1,000 V.D.C. |
| Mass | Approx. 50g (5-turn) Approx. 60g (10-turn) |
| Max. practical resistance value | 100Ω (5turn), 200Ω (10turn) |
| Max. working voltage | 900V |
| Mechanical travel | 360º Xn (+10º n: No. of turns) |
| Noise | Within 100Ω E.N.R. |
| Power rating | 1.5W (5-turn), 2.0W (10-turn) |
| Resist. temp. coefficient of wire | ±20p.p.m./ºC |
| Shaft dia. (mm) | 4 |
| Standard resistance range | 100Ω to 50kΩ (5turn), 100Ω to 100kΩ (10turn) |
| Starting torque | Within 5mN·m (50gf·cm) (Servomount) |
| Stopper strength | Approx. 0.9N·m (9kgf·cm) |
| Total resistance tolerance | Standard Class ±3%(H), Precision Class ±1%(F) |
