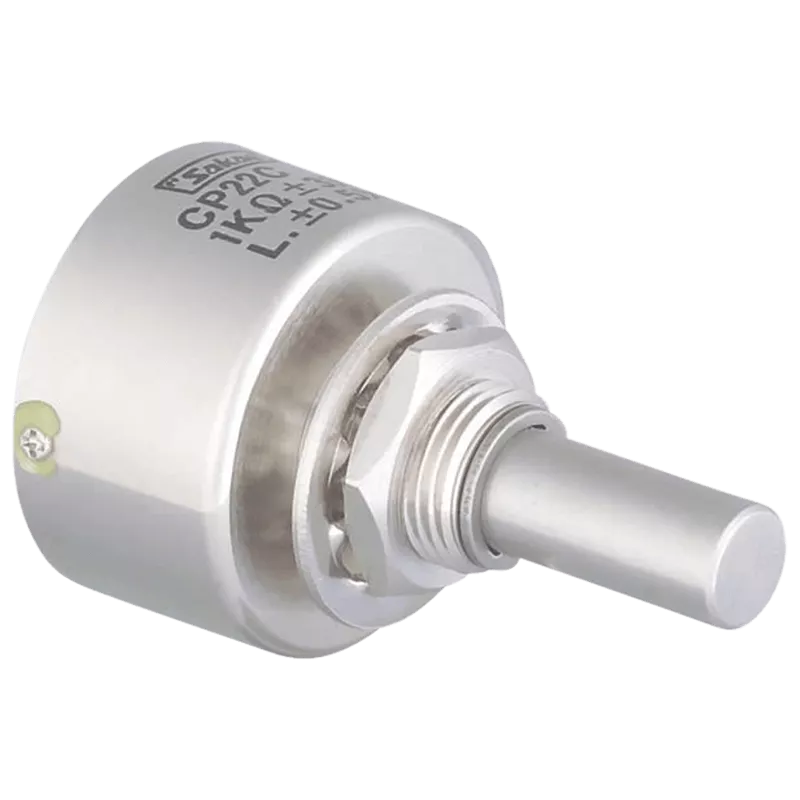

CP22C Single-turn Potentiometer
1-Turn Potentiometer Metal Housing, Wirewound (Bushingmount)
Key features
- Wirewound
- Dimensions D x L (mm): 22x12
- Standard Resistance Range 50 Ω to 10 kΩ
- Independent Linearity (± %): 0.5 to 0.25
- Mechanical travel: 360°
- Electrical travel: 355° ±5°
About the CP22C Single-turn Potentiometer- Wirewound (Bushingmount)
The CP22C is a low-cost potentiometer with metal housing and rear extended lug terminals.
Special Specifications Available
Lower resistance values (10Ω, 20Ω), extra taps (available up to 1 taps), shaft with front and rear extension (rear shaft with 3mm dia. and 20mm length), with stopper (rotating angle becomes 320º and stopper strength is 0.9N·m [9kgf·cm]), special electrical travel, shaft dia. (ø6.35mm) with inch dimensions, special machining on the shaft.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Dielectric strength | 1 minute at 1,000 V.A.C. |
| Electrical travel | 355º ±5º |
| Independent linearity tolerance | Standard Class ±0.5% Precision Class ±0.25% (±0.35% in case of within 1kΩ) |
| Insulation resistance | Over 1,000MΩ at 1,000 V.D.C |
| Mass | Approx. 30g |
| Max. practical resistance value | 20kΩ |
| Mechanical travel | 360º (Endless) |
| Noise | Within 100Ω E.N.R. |
| Power rating | 0.5W |
| Resist. temp. coefficient of wire | ±20p.p.m./ºC |
| Shaft diameter (mm) | 6 |
| Standard resistance range | 50Ω to 10kΩ |
| Starting torque | Within 5mN·m (50gf·cm) |
| Total resistance tolerance | Standard Class ±3%(H) Precision Class ±1%(F) |
