CP22 Single-turn Potentiometer
RoHS Compliant - Wirewound (Servomount)
Key features
- Wirewound
- Dimensions D x L (mm): 22.23 x 15
- Standard Resistance Range 50 Ω to 10 kΩ
- Independent Linearity (± %): 0.5 to 0.2
- Mechanical travel: 360°
- Electrical travel: 355° ±5°
About the CP22 Single-turn Potentiometer- Wirewound (Servomount)

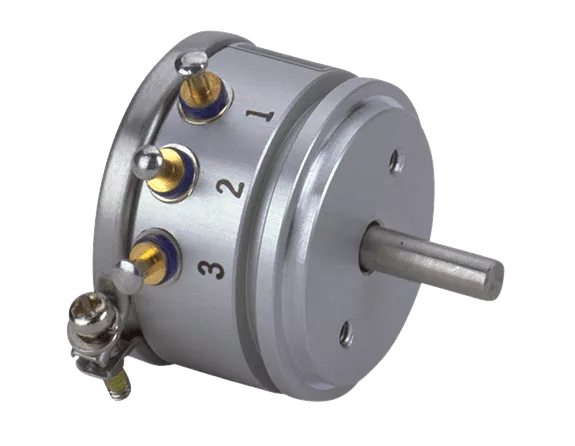

The CP22 is a servomount type potentiometer with ball bearings and a 22mm outer diameter and turret side terminals.
Special Specifications Available
Lower resistance values (10Ω, 20Ω), extra taps (available up to 2 taps), multiganged (available up to 5 gangs. Housing length is extended by 8.5mm per gang), shaft with front and rear extension (rear shaft with 3mm dia. And 10mm length), with stopper (rotating angle becomes 330º and stopper strength is 0.3N·m [3kgf·cm]), special electrical travel, shaft dia. (ø3.175mm) with inch dimensions, special machining on the shaft.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Dielectric strength | 1 minute at 1,000 V.A.C. |
| Electrical travel | 355º ±5º |
| Independent linearity tolerance | Standard Class ±0.5%, Precision Class ±0.2% (±0.3% in case of within 1kΩ) |
| Insulation resistance | Over 1,000MΩ at 1,000 V.D.C |
| Mass | Approx. 15g |
| Max. practical resistance value | 20kΩ |
| Mechanical travel | 360º (Endless) |
| Noise | Within 100Ω E.N.R. |
| Power rating | 0.5W |
| Resist. temp. coefficient of wire | ±20p.p.m./ºC |
| Shaft diameter (mm) | 3 |
| Standard resistance range | 50Ω to 10kΩ |
| Starting torque | Within 1.5mN·m (15gf·cm) |
| Total resistance tolerance | Standard Class ±3%(H) Precision Class ±1%(F) |
