CP45 Single-turn Potentiometer
1-turn Potentiometer Wirewound (Servomount) | RoHS Compliant
Key features
- Wirewound
- Dimensions D x L (mm): 41x18
- Standard Resistance Range 50 Ω to 20 kΩ
- Independent Linearity (± %): 0.5 to 0.1
- Mechanical travel: 360°
- Electrical travel: 355° ±3°
About the CP45 Single-turn Potentiometer- Wirewound (Servomount)

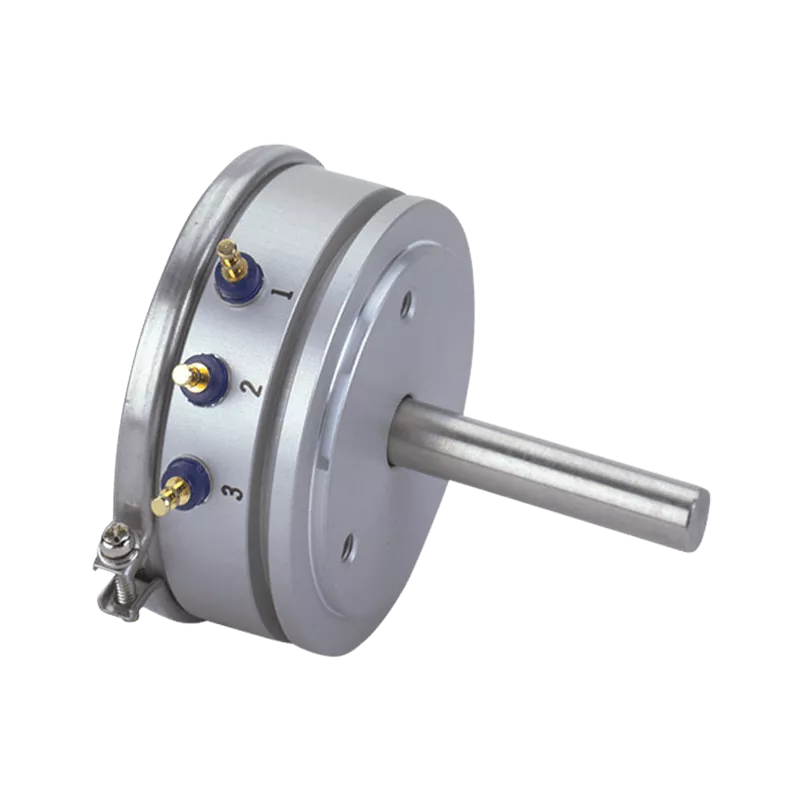

The CP45 is a servomount type potentiometer with ball bearings and a 41mm outer diameter and turret side terminals.
Special Specifications Available
Lower resistance values (10Ω, 20Ω), extra taps (available up to 5 taps), multiganged (available up to 7 gangs. Housing length is extended by 12mm per 1 gang), shaft with front and rear extension (rear shaft with 6mm dia. and 15mm length), bushingmount type, with stopper (rotating angle becomes 330º and stopper strength is 0.9N·m [9kgf·cm]), special electrical travel, shaft dia. (ø6.35mm) with inch dimensions, special machining on the shaft.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Dielectric strength | 1 minute at 1,000 V.A.C. |
| Electrical travel | 355º ±3º |
| Independent linearity tolerance | Standard Class ±0.5%, Precision Class ±0.1% |
| Insulation resistance | Over 1,000MΩ at 1,000 V.D.C |
| Mass | Approx. 90g |
| Max. practical resistance value | 50kΩ |
| Mechanical travel | 360º (Endless) |
| Noise | Within 100Ω E.N.R. |
| Power rating | 1.0W |
| Resist. temp. coefficient of wire | ±20p.p.m./ºC |
| Shaft diameter (mm) | 6 |
| Standard resistance range | 50Ω to 20kΩ |
| Starting torque | Within 4mN·m (40gf·cm) |
| Total resistance tolerance | Standard Class ±3%(H), Precision Class ±1%(F) |
