DA Turns-counting Dials Digital Type Potentiometer
Turns-counting Dials Potentiometer with Digital-Readout
Key features
- Read-out: Digital
- Outer dimensions (mm): 24
- Max. Number of turns-counting: 10
- Macthing shaft dia. (mm): 6, 6.35
- Lock device: Yes
About the DA Turns-counting Dials Digital Type Potentiometer

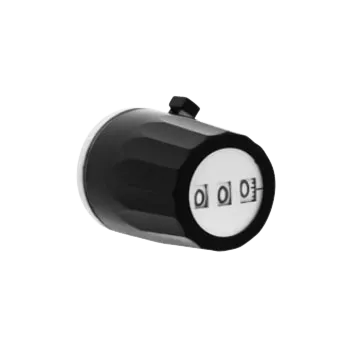

The DA has a round-shaped digital read-out dial. Two kinds of special adaptors to adjust the heigh of the dial are available.
Turns-counting dials Potentiometers are designed for use with Helicalohm Potentiometers and multi-turn potentiometers. They have a elegant appearance and rigid construction offering an easy reading, smooth rotation and accurate counting.
Special Specifications available
Knob in white color, specially marked in face plate such as with a decimal point, comma, etc. DA dial without lock device.
How to mount DA Series
The mounting adaptor of Model DA Series Digital Counting Dial and the Helicalohm pot. are fixed on the panel according to the illustration given left. The shaft of the Helicalohm pot. is turned anti clockwise to its limit and is put into the mounting hole of the dial which was already set at "000". The shaft of the Helicalohm pot. is secured by the screw positioned at the knob of the dial with the attached hexagonal wrench. With this, the mounting is completed.
CAUTION:
Do not rotate the fixing screw over 180º with the hexagonal wrench when removing Helicalohm pot. from model DA Series Digital Counting Dial. Otherwise, innner neighbouring plastic gear may be damaged.
Recessed Mounting Adaptor
Two kinds of Recessed Mounting Adaptors are available on option in Model DA dial.
When using this recessed mounting adaptor, please place an order for the potentiometer, digital turns-counting dial and recessed mounting adaptor in one set for assembling them at Althen and it will be supplied in one unit.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Special: 6.35 | |
| Combinable helicalohm pot. (matching shaft length of 25mm) | 25HP, 20HHP, 46HD, 20HP |
| Lock device | Yes |
| Mass (approx. g) | 40 |
| Matching shaft diameter (mm) | Standard: 6 |
| Max. number of turns-counting | 10 |
| Operating temp. range | -30ºC ~+85ºC |
| Outer dimensions (mm) | 24 |
| Read-out | Digital |
