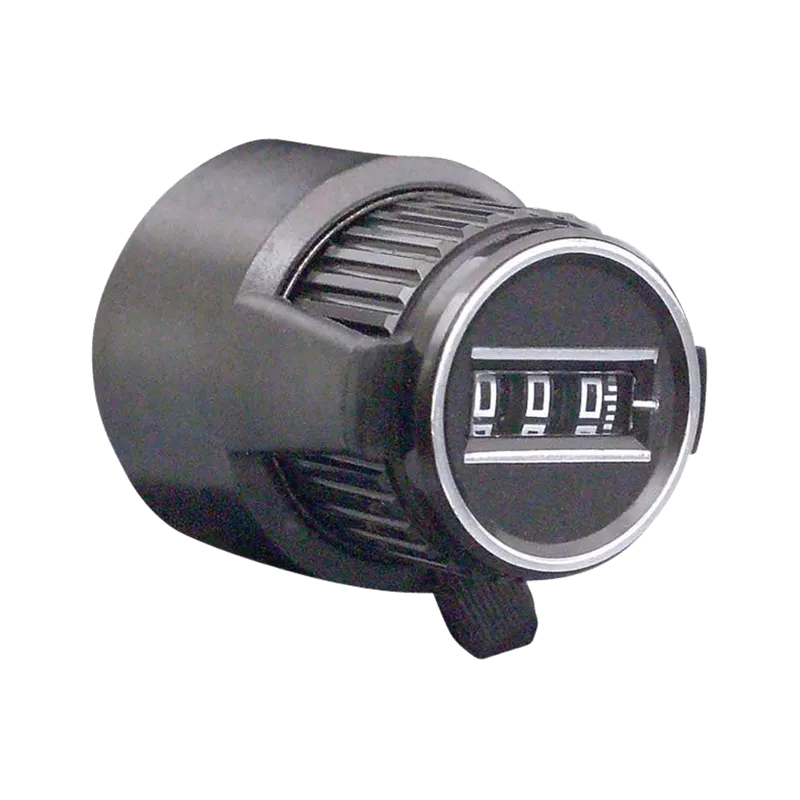

DC Turns-counting Dials Digital Type Potentiometer
Turns-counting Dials Potentiometer with Digital-Readout
Key features
- Read-out: Digital
- Outer dimensions (mm): 27x31.5
- Max. Number of turns-counting: 10
- Macthing shaft diameter (mm): 6
- Lock device: Yes
About the DC Turns-counting Dials Digital Type Potentiometer
The DC model is a low-cost and round-shaped digital dial.
Turns-counting dials Potentiometers are designed for use with Helicalohm Potentiometers and multi-turn potentiometers. They have a elegant appearance and rigid construction offering an easy reading, smooth rotation and accurate counting.
How to mount DC series
DC series dials are mounted as per the following sketches (Mounting method 1-3): Firstly, the shaft of potentiometer is turned anticlockwise to its limit and after the graduation of DC dial is adjusted to "000", the shaft of potentiometer is secured by the set screw positioned at the knob of the dial with the attached hexagonal wrench. With this the mounting is completed.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Special: 3, 3.175, 4 | |
| Combinable helicalohm pot. (matching shaft length of 25mm) | 22HP-n, 22HP-nN, 25HP-nD, 22HHP-n, 22HHP-nN |
| Lock device | Yes |
| Mass (approx. g) | 30 |
| Matching shaft dia. (mm) | Standard: 6, 6.35 |
| Max. indication | 9 9 9 (1/5000) |
| Max. number of turns-counting | 10 |
| Mounting method (see page 56) | 1 |
| Operating temp. range | -30ºC ~+60ºC |
