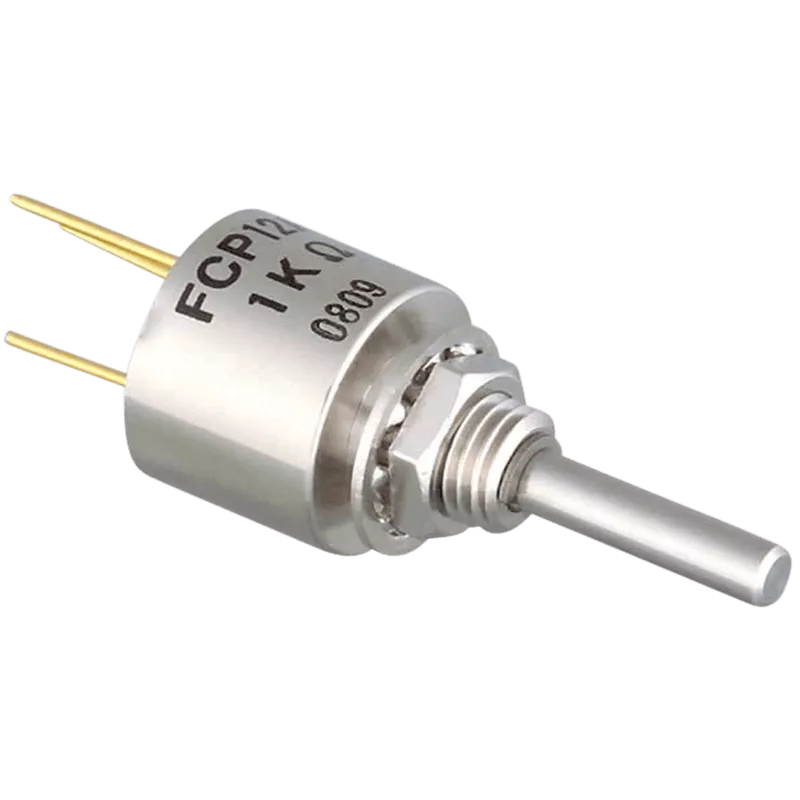

FCP12AC Single-turn Potentiometer
Conductive plastic - Bushingmount
Key features
- Conductive plastic
- Dimensions D x L (mm): 13 x 10
- Standard Resistance Range 1 Ω to 10 kΩ
- Independent Linearity (± %): 2.0 to 1.0
- Mechanical travel (+10° 0°): 360°
- Electrical travel (±5°): 300° ±5°
About the FCP12AC Single-turn Potentiometer- Conductive plastic (Bushingmount)
The FCP12AC is a low-cost 1-turn potentiometer with rear extended pin terminals.
Special Specifications Available
Extra taps (available up to 1 tap), shaft with front and rear extension (rear shaft with 1mm dia. and 10mm length), with stopper (rotating angle becomes 310º and stopper strength is 0.3N·m [3kgf·cm]), special electrical travel, shaft dia. (ø3.175mm) bushing with inch dimensions, special machining on the shaft.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Contact resistance variation | Within 3% C.R.V. |
| Dielectric strength | 1 minute at 500 V.A.C. |
| Electrical travel | 300º ±5º |
| Independent linearity tolerance | Standard Class ±2.0% precision Class ±1.0% |
| Insulation resistance | Over 1,000MΩ at 500 V.D.C |
| Mass | Approx. 8g |
| Mechanical travel | 360º (Endless) |
| Output smoothness | Within 0.1% against input voltage |
| Power rating | 0.2W |
| Resistance temp. coefficient | ±400p.p.m./ºC |
| Resolution | Essentially infinite |
| Special practical resistance values | 500, 20k, 50k, 100k (Ω) |
| Standard resistance values | 1k, 2k, 5k, 10 k (Ω) |
| Starting torque | Within 2mN·m (20gf·cm) |
| Starting torque | Within 2mN·m (20gf·cm) |
| Total resistance tolerance | Standard Class ±15% (L) Precision Class ±10% (K) |
