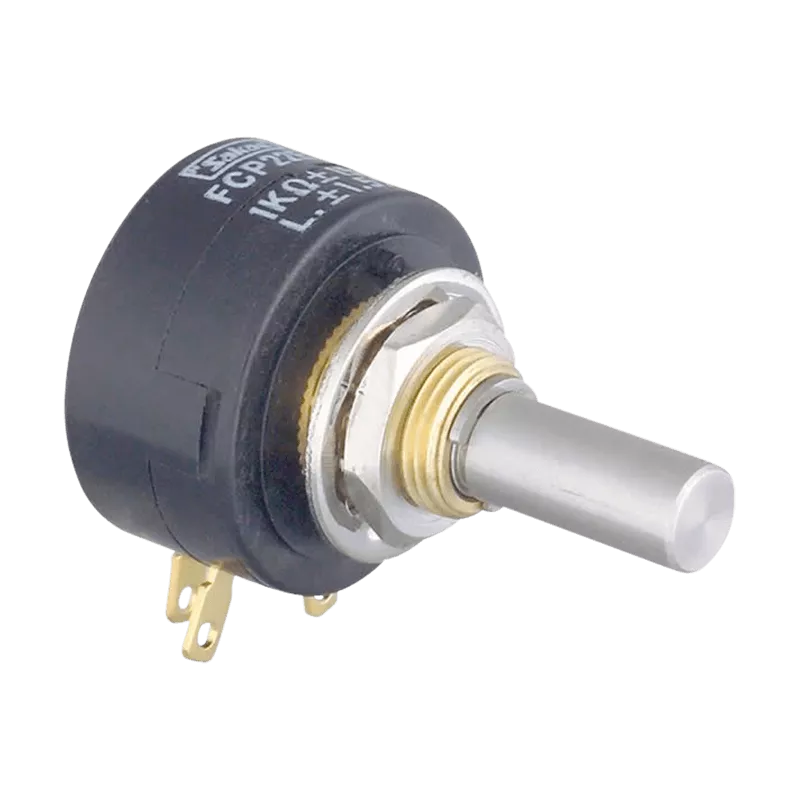

FCP22E Single-turn Potentiometer
Plastic Housing - Bushingmount - RoHS Compliant
Key features
- Conductive plastic
- Dimensions D x L (mm): 22x12
- Standard Resistance Range 1 Ω to 10 kΩ
- Independent Linearity (± %): 1.5 to 1.0
- Mechanical travel (+10° 0°): 360°
- Electrical travel (±5°): 320° ±5°
About the FCP22E Single-turn Potentiometer- Conductive plastic (Busingmount)
The FCP22E is a low-cost potentiometer with plastic housing, internationally patented snapping-in construction and side lug terminals.
Special Specifications Available
Extra taps (available up to 1 tap). Rear shaft (6mm dia. and 20mm length), Multi-ganged (available up to 10 gangs), Stopper (rotating angle becomes 320º and stopper strength is 0.6N·m [6kgf·cm]), Special electrical travel, Inch dimensional shaft dia. (ø6.35mm) · Bushing with inch dimensions, Special machining on the shaft.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Contact resistance variation | Within 2% C.R.V. |
| Dielectric strength | 1 minute at 500 V.A.C. |
| Electrical travel | 320º ±5º |
| Independent linearity tolerance | Standard Class ±1.5%, Precision Class ±1.0% |
| Insulation resistance | Over 1,000MΩ at 500 V.D.C |
| Mass | Approx. 20g |
| Mechanical travel | 360º (Endless) |
| Output smoothness | Within 0.1% against input voltage |
| Power rating | 1.0.W |
| Resistance temp. coefficient | ±400p.p.m./ºC |
| Resolution | Essentially infinite |
| Shaft diameter (mm) | 6 |
| Special practical resistance values | 500, 20k, 50k, 100k (Ω) |
| Standard resistance values | 1k, 2k, 5k, 10k (Ω) |
| Starting torque | Within 5mN·m (50gf·cm) |
| Total resistance tolerance | Standard Class ±15% (L), Precision Class ±10% (K) |
