FCP50A Single-turn Potentiometer
1-turn Potentiometer | Conductive plastic (Servomount)
Key features
- Conductive plastic
- Dimensions D x L (mm): 50.8 x 18
- Standard Resistance Range 1 Ω to 10 kΩ
- Independent Linearity (± %): 0.5 to 0.05
- Mechanical travel (+10° 0°): 360°
- Electrical travel (±5°): 350° ±5°
About the FCP50A Single-turn Potentiometer- Conductive plastic (Servomount)

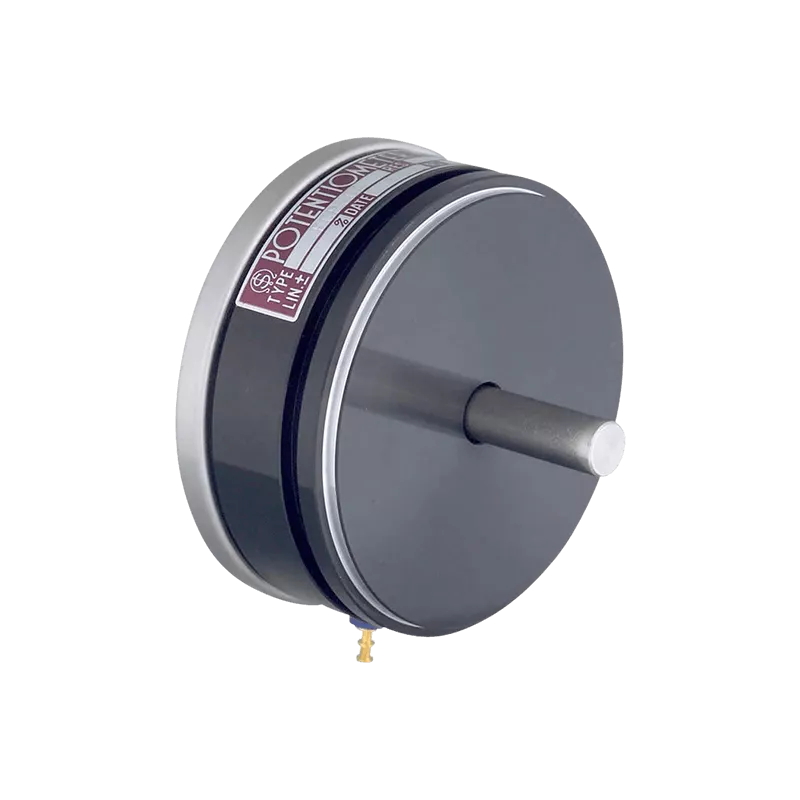

The FCP50A is a servomount type potentiometer with ball bearings, a 51mm outer diameter and turret side terminals.
Special Specifications Available
Extra taps (available up to 3 taps), multi-ganged (available up to 7 gangs, housing length is extended by 12mm per 1 gang), shaft with front and rear extension (rear shaft with 6mm dia. and 15mm length), with stopper (rotating angle becomes 320º and stopper strength is 0.9N·m [9kgf·cm]), special electrical travel, shaft dia. (ø6.35mm) with inch dimensions, special machining on the shaft.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Contact resistance variation | Within 2% C.R.V. |
| Dielectric strength | 1 minute at 1,000 V.A.C. |
| Electrical travel | 350º ±5º |
| Independent linearity tolerance | Standard Class ±0.5%, Precision Class ±0.2%, Super precision Class ±0.05% |
| Insulation resistance | Over 1,000MΩ at 1,000 V.D.C |
| Mass | Approx. 80g |
| Mechanical travel | 360º (Endless) |
| Output smoothness | Within 0.1% against input voltage |
| Power rating | 3.0W |
| Resistance temp. coefficient | ±400p.p.m./ºC |
| Resolution | Essentially infinite |
| Shaft diameter (mm) | 6 |
| Special practical resistance values | 500, 20k, 50k, 100k, 200k, 500k (Ω) |
| Standard resistance values | 1k, 2k, 5k, 10 k (Ω) |
| Starting torque | Within 4mN·m (40gf·cm) |
| Total resistance tolerance | Standard Class ±10% (K) |
