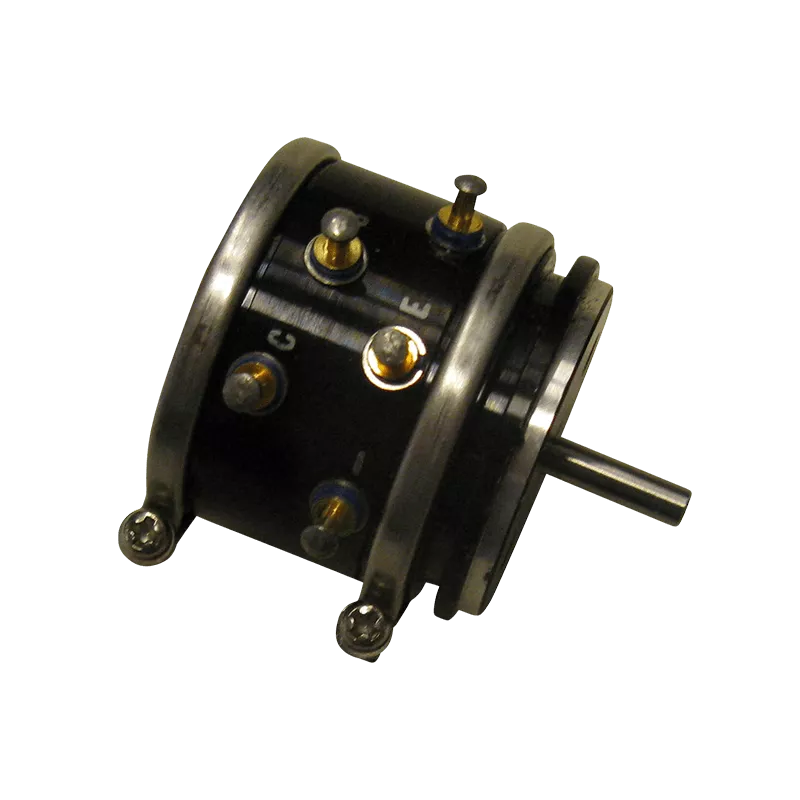

FSCB30A Sinus Cosinus Potentiometer
Non-Linear Conductive Plastic (Servomount) SIN/COS Potentiometer
Key features
- Dimensions (mm) DxL: 29×22.5
- Element: conductive plastic
- Function characteristics: 360°sin/cos
- Conformity peak to peak (± %): 1.0 to 0.7
- Mechanical travel: 360°
- Electrical travel: 360°
About the FSCB30A Sinus Cosinus Potentiometer
The FSCB30A is a servomount type potentiometer with ball bearings and precision sine/cosine output. It is available in multiple diameters.
Standard Specifications Available
Multi-ganged (available up to 3 gangs. Housing length is extended by 16mm per 1 gang), shaft with front and rear extension (rear shaft with 3mm dia. and 10mm length), shaft dia. (ø3.175mm) with inch dimensions, special machining on the shaft.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Precision Class ±0.7% | |
| (peak-peak) resolution | Essentially infinite |
| Conformity tolerance | Standard Class ±1.0% |
| Contact resistance variation | Within 8% C.R.V. |
| Dialectric strength | 1 minute at 500 V.A.C. |
| Electrical travel | 360º (Endless) |
| Insulation resistance | Over 1000MΩ at 500 V.D.C. |
| Mass | Approx. 30g |
| Mechanical travel | 360º (Endless) |
| Output smoothness | Within 0.1% against input voltage |
| Power rating | 0.75W |
| Resist. temp. coefficient | ±400p.p.m./ºC |
| Shaft dia. (mm) | 3 |
| Special practical resistance values | 500, 20k, 50k (Ω) |
| Standard resistance values | 1k, 2k, 5k, 10k (Ω) |
| Starting torque | Within 3mN·m (30gf·cm) |
| Total resistance tolerance | Standard Class ±15% (L), Precision Class ±10% (K) |
