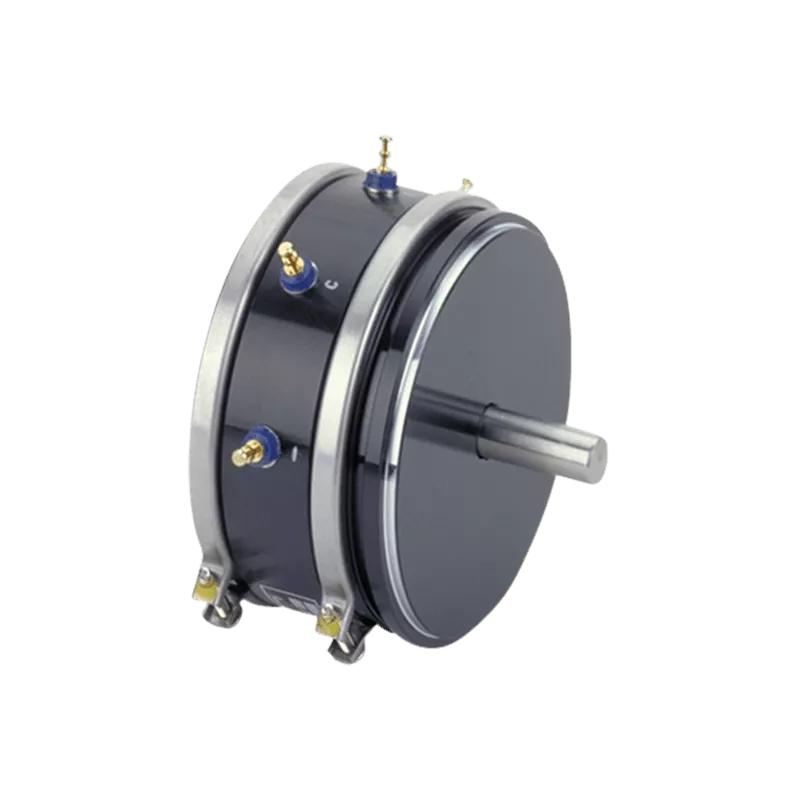

FSCB50A Sinus Cosinus Potentiometer
Non-Linear Conductive Plastic (Servomount) SIN/COS Potentiometer
Key features
- Dimensions (mm) DxL: 50.8×26
- Element: conductive plastic
- Function characteristics: 360°sin/cos
- Conformity peak to peak (± %): 0.5 to 0.2
- Mechanical travel: 360°
- Electrical travel: 360°
About the FSCB50A Sinus Cosinus Potentiometer
The FSCB50A is a servomount type potentiometer with ball bearings and precision sine/cosine output. It is available in multiple diameters.
Standard Specifications Available
Multi-ganged (available up to 3 gangs. Housing length is extended by 16mm per 1 gang), shaft with front and rear extension (rear shaft with 6mm dia. and 15mm length), bushingmount type, shaft dia. (ø6.35mm) with inch dimensions, special machining on the shaft, oil-filled type.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Precision Class ±0.3% | |
| Precision Class ±10% (K) | |
| Super Precision Class ±0.2% | |
| Conformity tolerance (peak-peak) | Standard Class ±0.5% |
| Contact resistance variation | Within 8% C.R.V. |
| Dielectric strength | 1 minute at 1,000V.A.C. |
| Electrical travel | 360º (Endless) |
| Insulation resistance | Over 1,000MΩ at 500 V.D.C. |
| Mass | Approx. 120g |
| Max. working voltage | 250V |
| Mechanical travel | 360º (Endless) |
| Output smoothness | Within 0.1% against input voltage |
| Power rating | 1.25W |
| Resist. temp. coefficient | ±400p.p.m./ºC |
| Resolution | Essentially infinite |
| Shaft dia. (mm) | 6 |
| Special higher practical resistance values | 20k, 50k, 100K (Ω) |
| Standard resistance values | 1k, 2k, 5k, 10k (Ω) |
| Starting torque | Within 5mN·m (50gf·cm) |
| Total resistance tolerance | Standard Class ±15% (L) |
