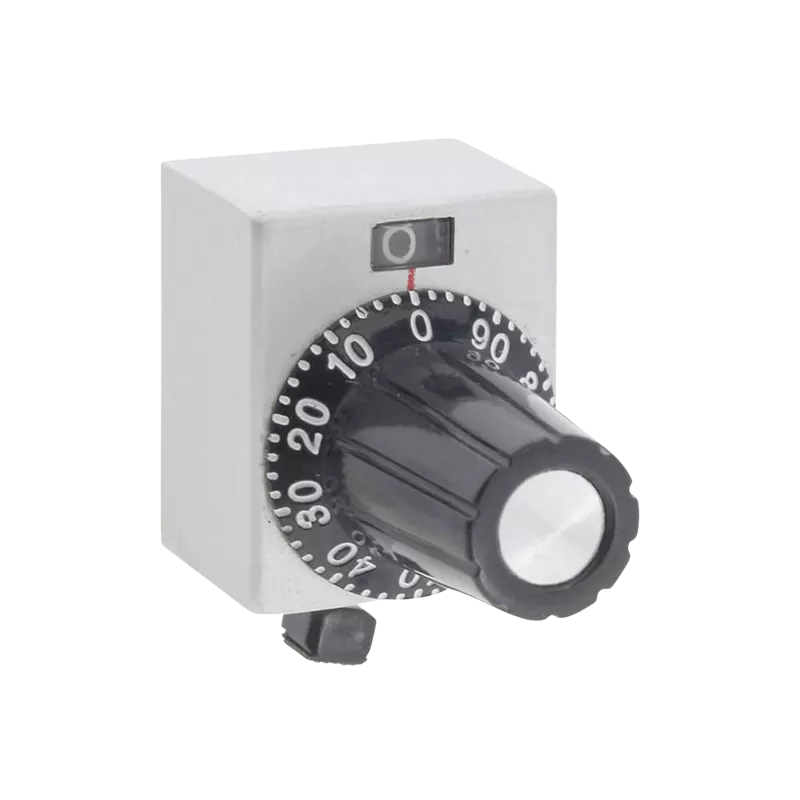

MF Turns-counting Dials Analog Type Potentiometer
Turns-counting Dials Potentiometer with Analog-Readout
Key features
- Read-out: Analog
- Outer dimensions (mm): 15x18.5
- Max. Number of turns-counting: 10
- Macthing shaft dia. (mm): 3, 3.175, 4, 6, 6.35
- Lock device: Yes
About the MF Turns-counting Dials Analog Type Potentiometer
The MF series is available in four sizes, all having an international patented flexible coupling inside.
Turns-counting dials Potentiometers are designed for use with Helicalohm Potentiometers and multi-turn potentiometers. They have a elegant appearance and rigid construction offering an easy reading, smooth rotation and accurate counting.
Special Specifications Available
Flexible coupling incorporated MF dial is provided with a flexible coupling situated between te shaft of the potentiometer to be mounted and inner dial knob and therefore, the connection is entirely free and only the force of rotating direction is transmittable. With such unique device, traditional trouble such as irregular rotation and ununiform torque due to inaccurate mounting of the potentiometrer on dial can be easily solved. Even the unskilled can mount this MF dial and you can save the labor cost using this MF dial.
Note: When rotating MF dial mounted with multi-turn potentiometer with over 20N (2kgf.) force, the flexible coupling may be damaged or broken. So, please take care of this fact during its operation.
How to mount MF Series
The mounting adaptor as well as specially shaped nut only for use with Model MF Series Dials and
Helicalohm pot. are fixed on the panel according to the illustration given above. The shaft of the Helicalohm pot. is turned anticlockwise to its limit and is put into the mounting hole of the dial which was already set at "0".
At the same time, 4 projections of the mounting adaptor are inserted in 4 receiving holes prepared on the base plate of the dial and then all parts should be pressed to the panel firmly to eliminate any space. The shaft of the potentiometer is fixed by the hexigonal nut positioned in the knob of the dial by screwing it with an attached hexagonal wrench.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Special: 3.175, 4 | |
| Combinable helicalohm pot. (matching shaft length of 25mm) | 10HP, 25HP, 12HP, 12HHP, 12HPC |
| Lock device | Yes |
| Mass (approx. g) | 15 |
| Matching shaft dia. (mm) | Standard: 3 |
| Max. number of turns-counting | 10 |
| Model no | MF10-15B |
| Operating temp. range | -30ºC ~ +60ºC |
| Patented flexible coupling | Yes |
