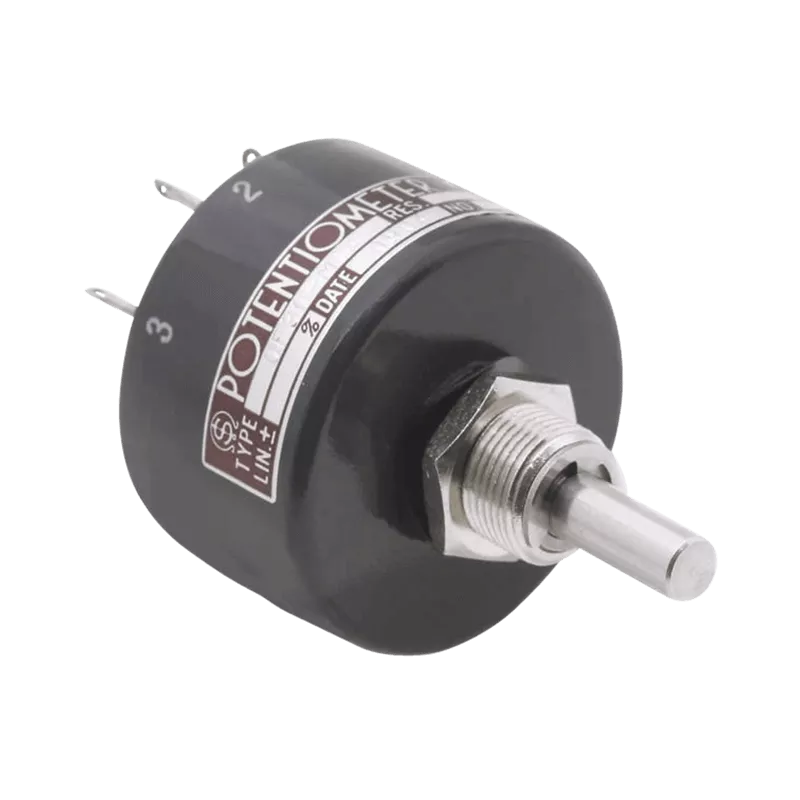

OF30-MCA Oil-filled Potentiometer
Oil-Filled Potentiometer Conductive Plastic (Bushingmount)
Key features
- Dimensions (mm) DxL: 32×21.5
- Shaft Dia. (mm): 5
- Independent linearity (±%): 1.0 to 0.5
- Mechanical travel (+10° 0°): 360°
- Electrical travel (±5°): 280°±5°
About the OF30-MCA Oil-filled Potentiometer
The OF30-MCA is a small sized long-life single turn type potentiometer with an infinite resolution.
Special specifications available
Extra taps (Available up to 1 tap), Special electric travel, Inch dimensional shaft dia. (ø 6.35mm) - Bushing with inch dimensions, Special machining on the shaft, Servomount type
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Contact resistance variation | Within 2% C.R.V. |
| Dielectric strength | 1 minute at 1,000 V.A.C. |
| Electrical travel | 280º +5° |
| Independent linearity tolerance | Standard Class ±1.0%, Precision Class ±0.5% |
| Insolution resistance | Over 100 MΩ at 1,000 V.D.C. |
| Mass | Approx. 40g |
| Mechanical travel | 360° (Endless) |
| Output smoothness | Within 0,1% against input voltage |
| Power rating | 1.0 W |
| Resist. tem perature coefficient of wire | ±400p.p.m./ºC |
| Resolution | Essentially infinite |
| Special practical resistance value | 500, 20k, 50k, 100k (Ω) |
| Standard resistance values | 1k, 2k, 5k, 10k (Ω) |
| Starting torque | Within 30mN·m (300gf·cm) |
| Total resistance tolerance | Standard Class ±10% (K) |
