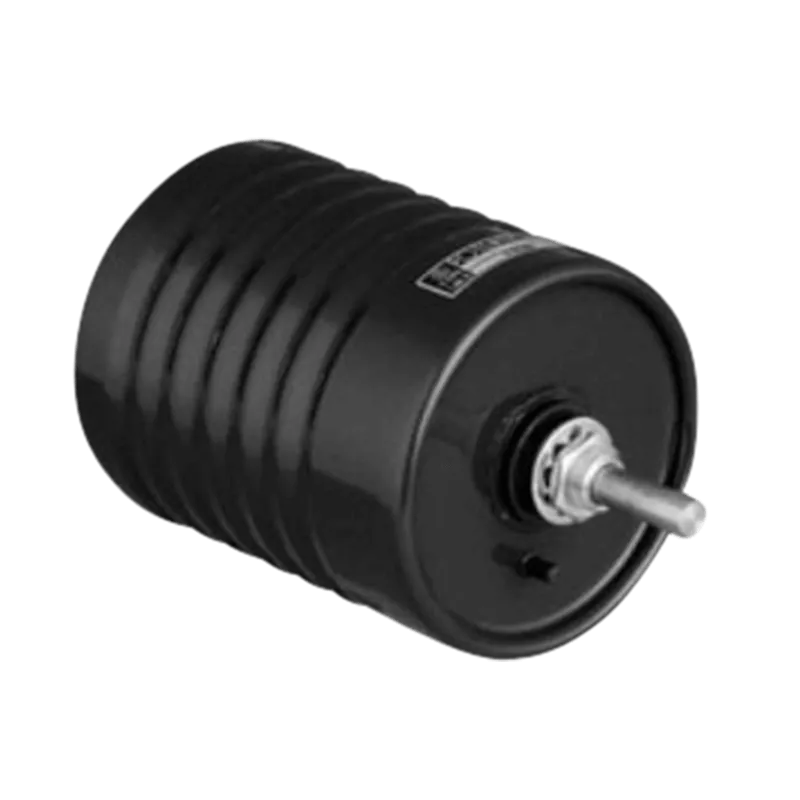

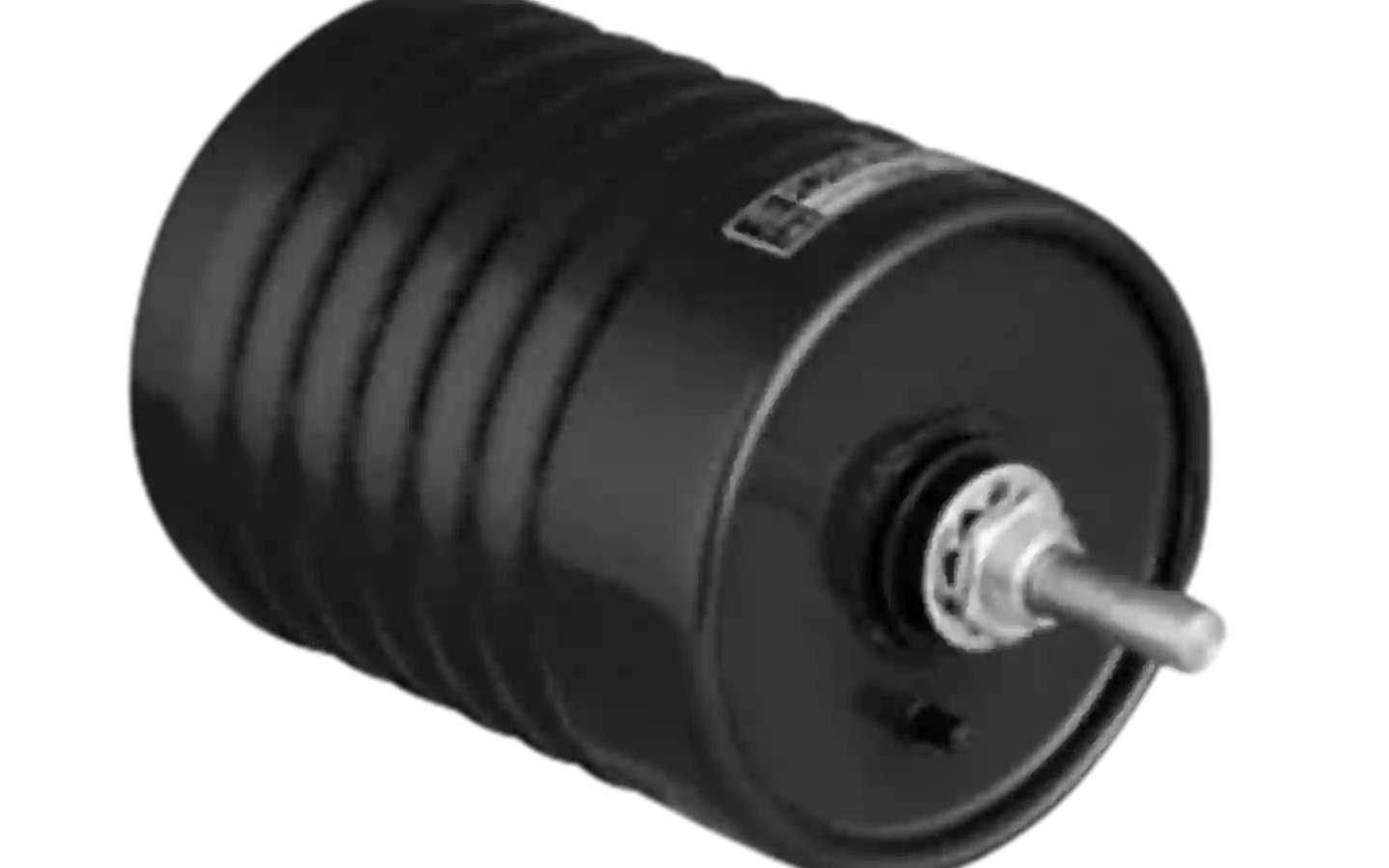

OF46HD Oil-filled Potentiometer
Wirewound Potentiometer Bushingmount 10-turn model
Key features
- Dimensions (mm) DxL: 62×75
- Shaft Dia. (mm): 6
- Independent linearity (±%): 0.3 to 0.1
- Mechanical travel (+10° 0°): 3,600 +10° 0°
- Electrical travel (±5°): 3600°±5°
About the OF46HD Oil-filled Potentiometer
The OF46HD is a precision multi-turn type potentiometer with bushingmount and a body diameter of 62mm.
Bushingmount type:
- OF46HD-10 (10-turn)
Servomount type:
- OF46HDS-10 (10-turn)
Special specifications available
Multi ganged (available up to 2 gangs. Please note that mounting method is changed from bushing mount to screwmounting), with limit-switches, 3-turn and 5-turn type (these housing lengths are the same as that of 10-turn type: 75±2 mm), shaft dia. (ø 3.175mm) · bushing with inch dimensions, special machining on the shaft, shaft with front and rear extension (rear shaft with 6mm dia. and 28mm length).
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Dielectric strength | 1 minute at 1,000 V.A.C. |
| Electrical travel | 3,600º ±5º |
| Independent linearity tolerance | Standard Class ±0.3%, Precision Class ±0.1% (±0.15% in case of on and within 5kΩ) |
| Insulation resistance | Over 100MΩ at 1,000 V.D.C. |
| Mass | Approx. 290g |
| Max. practical resistance value | 200kΩ |
| Max. working voltage | 900V |
| Mechanical travel | 3,600º+10º 0º |
| Noise | Within 100Ω E.N.R. |
| Power rating | 5.0W |
| Resist. temp. coefficient of wire | ±20p.p.m./ºC |
| Standard resistance range | 100Ω to 100kΩ |
| Starting torque | Within 30mN·m (300gf·cm) |
| Stopper strength | Approx. 0.9N·m (9kgf·cm) |
| Total resistance tolerance | Standard Class ±3% (H) (±5% (J) in case of within 1kΩ), Precision Class ±1% (K) |
