PL-LJC-F Series (Polyester Backing) Wire Strain Gauges for Concrete Material
Single element straingauge for concrete material paralelled vinyl leadwire included
About the PL-LJC-F Series (Polyester Backing)

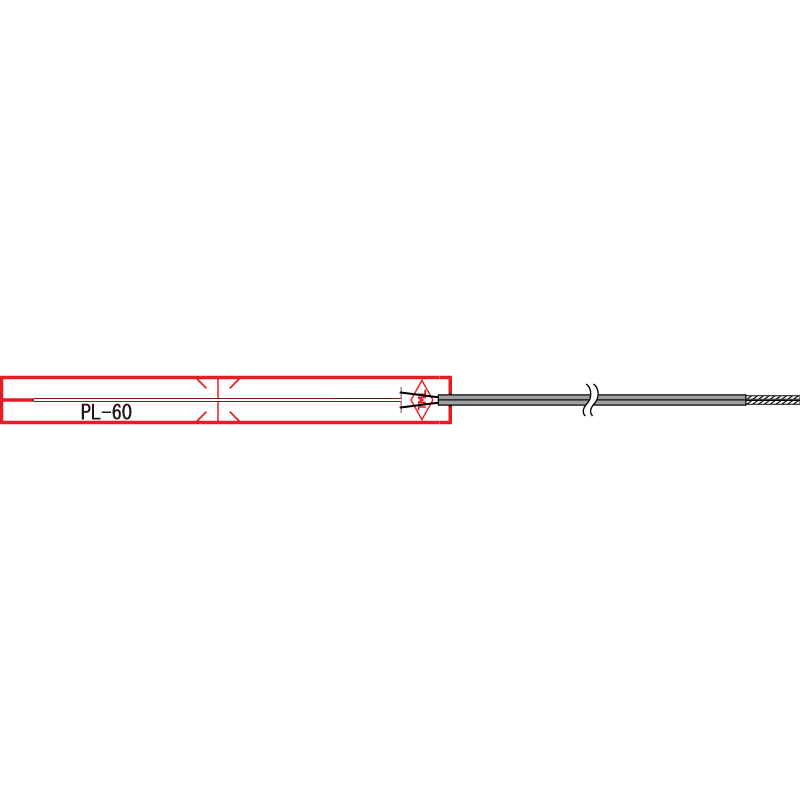

P series polyester wire strain gauge
These are wire strain gauges utilizing a transparent plastic backing impregnated with polyester resin. The gauge length is available in 3 ranges of 60, 90 and 120mm, so it is suited to the measurement of concrete strain. Since the backing is transparent, the bonding position can easily be checked in the installation works.
Features PL-LJC-F
- Type: Single element including paralelled leadwire, for steel, concrete and mortar use
- Gauge resistance: 120Ω
- Gauge length: 60, 90, 120mm
Strain gauges with integral paralleled vinyl leadwire are available only for single element PL:
- Paralleled 1m
- Paralleled 3m
- Paralleled 5m
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Backing | Polyester |
| Bonding adhesive | CN-E, RP-2, PS |
| Element | Cu-Ni (wire) |
| Fatigue life at room temperature | 1×10⁵ (±1000×10⁻⁶ strain) |
| Main object material | Concrete, mortar |
| Operational temperature(°c) | -20~+80°C |
| Strain limit | 2% (20000×10⁻⁶ strain) |
| Temperature compensation range(°c) | +10~+80°C |
