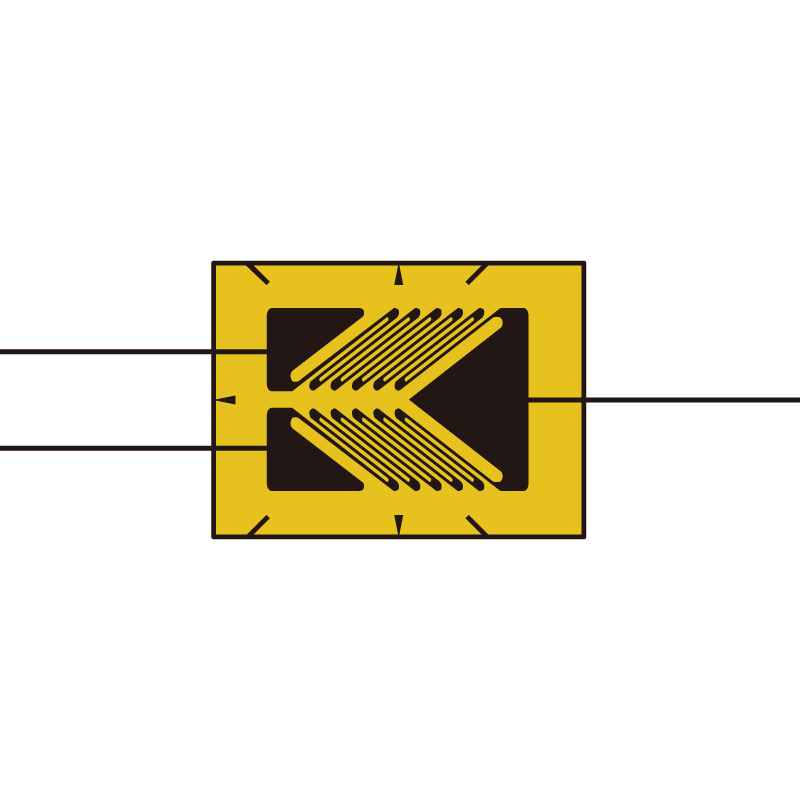

QFCT Series High Temperature Use Strain Gauges
High temperature strain gage for torque measurement
About the QFCT Series High Temperature Use Straingauges
QF series High temperature use strain gauge
This gauge utilizes polyimide resin as a backing. Strain measurement in high temperature up to 200°C is easily realized by bonding the gauge with room temperature curing adhesive NP-50B.
Features QFCT
- Type: High temperature dual element for torque measurement
- Gauge resistance: 120, 350Ω
- Gauge length: 2mm
Temperature compensation materials
- 11: Mild steel
- 17: Stainless steel
- 23: Aluminium
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Applicable specimen | Metal, Ceramics |
| Backing | Polyimide |
| Bonding adhesive | NP-50B, CN, C-1 |
| Element | Cu-Ni alloy foil |
| Fatigue life at room temperature | 1×10⁶ (±1500×10⁻⁶ strain) |
| Operational temperature(°c) | -20~+200°C |
| Strain limit | 3% (30000×10⁻⁶ strain) |
| Temperature compensation range(°c) | +10~+100°C |
