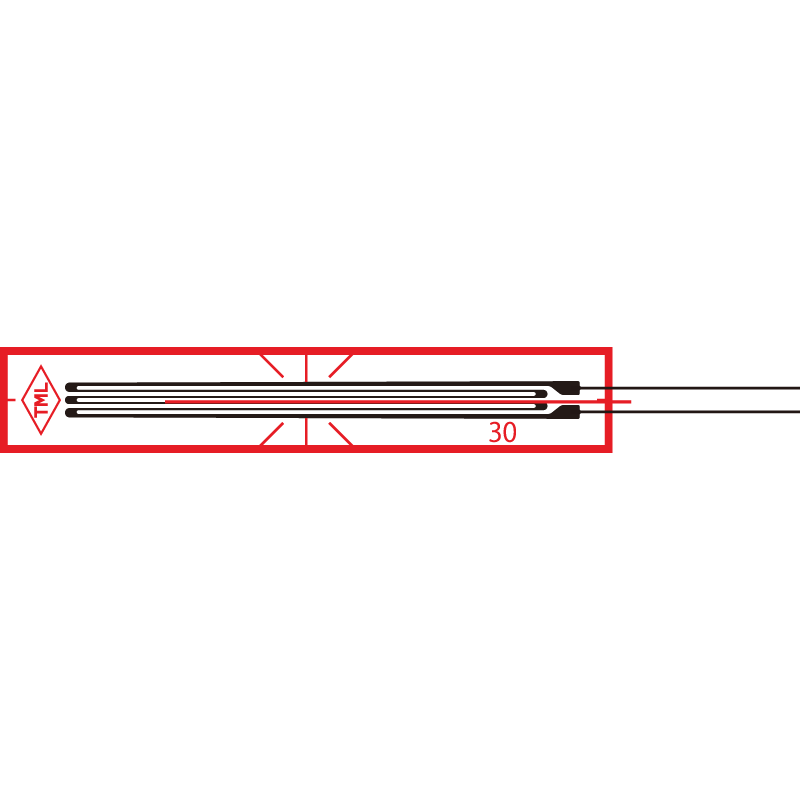

PFLW Series Strain Gauge for Wood Use
Specially designed for long term measurement on wood
Key features
- 2% (20000×10⁻⁶ strain) Strain limit
- Operational temperature: -20~+80°C
- Type: For long term measurement on wood
- Polyester backing, Cu-Ni (wire) element
- Gauge resistance: 120Ω
- Gauge length: 30mm
About the PFLW Series for Wood Use
PFLW/PLW series long term use strain gauge on wood
This gauge has a thin metal backing for long term measurement on woods, not affected by moisture contained in wood. The gauge is bonded with PS adhesive.
Temperature compensation materials
- 11: Wood
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Applicable specimen | Wood |
| Backing | Polyester |
| Bonding adhesive | PS |
| Element | Cu-Ni (wire) |
| Fatigue life at room temperature | 1×10⁶ (±1000×10⁻⁶ strain) |
| Operational temperature(°c) | -20~+80°C |
| Strain limit | 2% (20000×10⁻⁶ strain) |
| Temperature compensation range(°c) | +10~+80°C |
