Key features

3% (30000×10⁻⁶ strain) Strain limit
Fatigue life: 3×10⁴ (±1500×10⁻⁶ strain)
Operating temperature: 0~+80°C
Temperature compensation: +10~+80°C
Gauge resistance: 120Ω
Gauge length: 3, 6mm

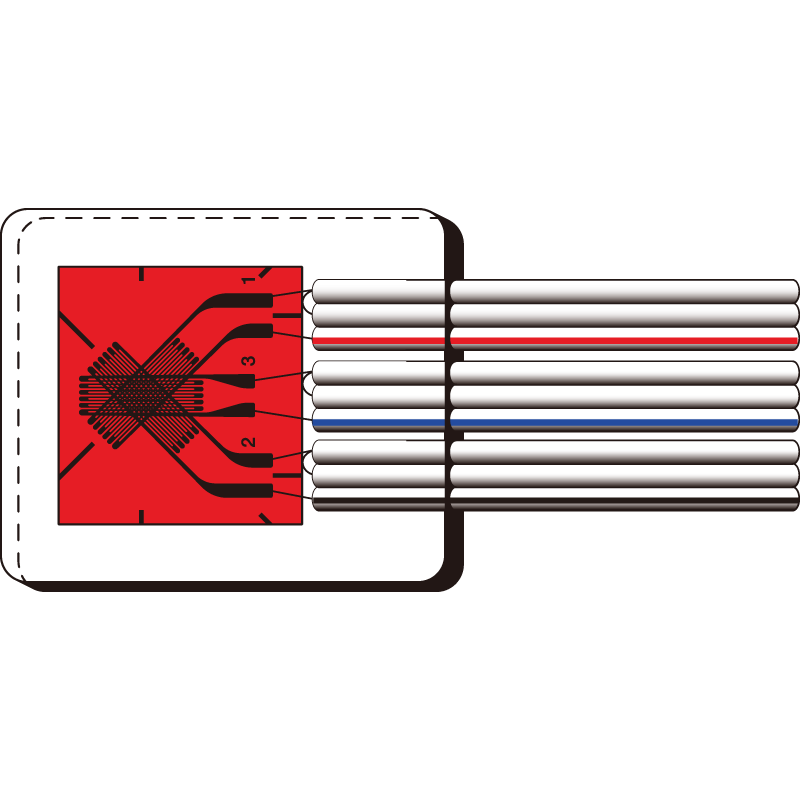

Type: Waterproof 3-element with integrated leadwire, general use

About the WFRA Series Waterproof Straingauges

Our WF-series water proof type strain gauges eliminate the need for moisture-proofing coating, which is sometimes troublesome in a field test. They have a pre-attached vinyl leadwire and an entire coating with epoxy resin. The coating is transparent and flexible, which ensures easy installation of the gauge. By merely bonding the gauges with CN or P-2 adhesive, outdoor or underwater measurement for a short-term becomes possible. These gauges are also effective in omitting primary coating in case of applying a multilayer coating.

Temperature compensation materials

11: Mild steel
17: Stainless steel
23: Aluminium

Strain gauges with paralleled vinyl leadwire or 3-wire paralleled vinyl leadwire are available:

Paralleled 1m
Paralleled 3m
Paralleled 5m
3-wire 3m
3-wire 5m

Used leadwire: 0.08mm² total resistance of leadwire per meter: 0.44Ω

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Product downloads

Wf series standard straingauges en

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification	Value
Applicable specimen	Metal, Glass, Ceramics
Backing	Epoxy
Bonding adhesive	CN, P-2
Element	Cu-Ni
Fatigue life at room temperature	3×10⁴ (±1500×10⁻⁶ strain)
Operational temperature(°c)	0~+80°C
Strain limit	3% (30000×10⁻⁶ strain)
Temperature compensation range(°c)	+10~+80°C
