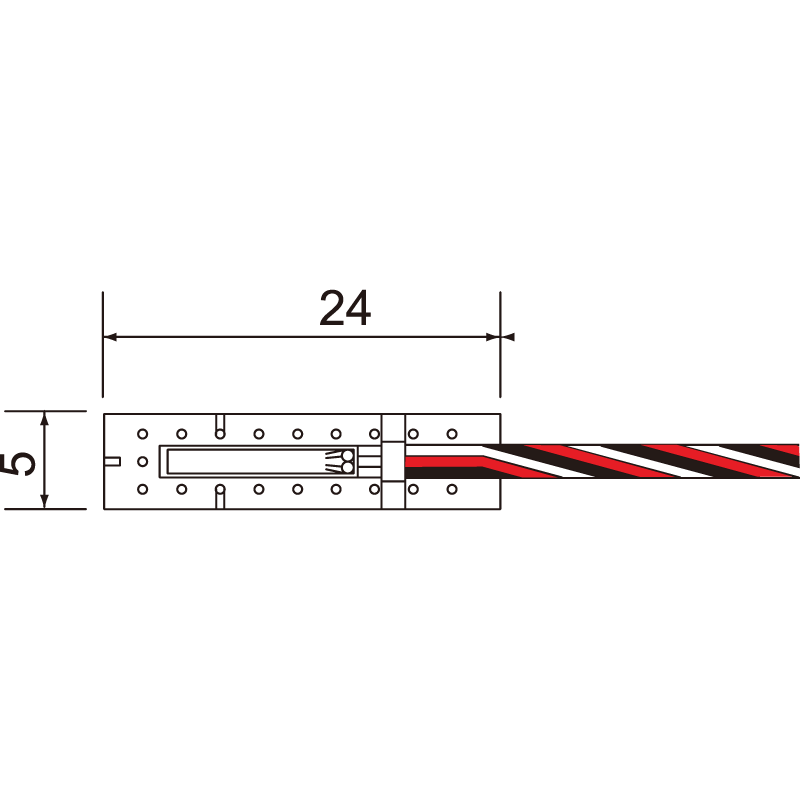

AW-6-350 Quarter Bridge Strain Gauges with 3-wire System

For measurement of specimen to which adhesion is not applicable

View technical specifications

Key features

  • 0.5% (5000×10⁻⁶ strain) Strain limit
  • Operational temperature: -196~+300°C
  • Spot welding bonding
  • Type: Quarter bridge with 3-wire method
  • Gauge resistance: 350Ω
  • Gauge length: 6mm

About the AW-6-350 Quarter Bridge with 3-wire System

This gauge has corrosion-resisting stainless steel base with thickness of 0.08 mm. It is easily installed by using a dedicated spot welder W-50RB. It is suited to strain measurement up to 300°C, measurement of specimen to which adhesion is not applicable, and/or long term measurement.

AW series high temperature weldable strain gauge
These strain gauges have strain sensing elements fully encapsulated in corrosion-resisting metal tubes made of stainless steel or Inconel (except AW-6-350). The strain gauge backings are also made of the same material, and the gauges are installed by spot welding to metal specimens using a dedicated spot welder. The maximum operating temperatue is 800°C for the AWHU. These gauges are suited to measurement in high temperature harsh environments such as underwater or gas-filled atmosphere, or for long term. The AWC-2B and AWCH-2 are available in 1-Gauge 4-Wire configuration.

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Request a quotation

Always the right sensor solution.

  • Free and independent advice for your application
  • Tailor-made offer
  • Development of standard and customised solutions
  • Fast response time

AW-6-350 Quarter Bridge Strain Gauges with 3-wire System

 Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Backing SUS304
Bonding adhesive Spot welding (TML spot welder W-50R is required)
Element Special alloy
Fatigue life at room temperature 1×10⁶ (±1000×10⁻⁶ strain)
Main object material Metal
Operational temperature(°c) -196~+300°C
Strain limit 0.5% (5000×10⁻⁶ strain)
Temperature compensation range(°c) +10~+800°C
