PNS-3 Digital Display with Inclinometer

Tilt measurement system incl. inclinometer

View technical specifications

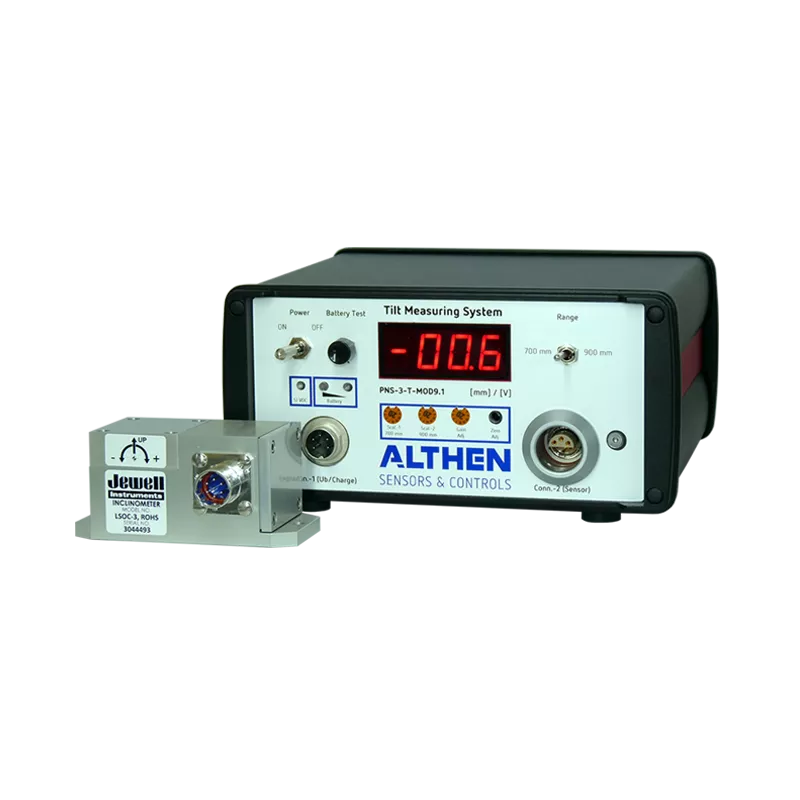

About the PNS-3 Digital Display with Inclinometer

This PNS-3 is a tilt measurement system developed for measuring the tilt of die-cast (ingot mold) in steel treatment. The system contains a precision tilt meter, a force-balance inclinometer and a connecting cable between tilt meter and inclinometer. Additional accessories like mounting brackets, mechanical stops, etc. have to be procured by 3rd. party.

Key features PNS-3

Measurement range ±3
Supply voltage via integrated rechargeable NiMH battery
Analog output ±5 V
3½ digit LCD

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Product downloads

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification	Value
Analog output	±5 V, max. 1 mA (short-time short-circuit proof)
Dimensions (w x h x d)	190 x 90 x 186 mm
Electrical connections	Connector
Enclosure	Aluminium desktop enclosure (IP20)
Input resistance	>3 MΩ
Limit frequency (-3db)	1 Hz
Non-linearity	±0.05 % FS
Number of channels	1
Operating temperature range	0 °C to +50 °C
Power consumption	8 W max.
Scaling	For leg length 900 mm or 1.100 mm, other scaling on request
Storage temperature range	-20 °C to +60 °C
Supply voltage	12 VDC via integrated rechargeable NiMH battery
Weight	3000 g
