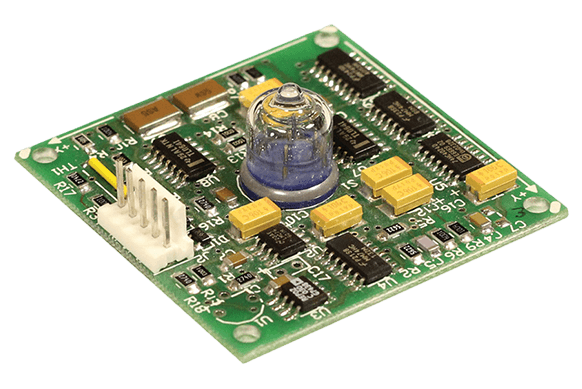

900 Biaxial Clinometer

---

Key features

• Measurement range: ±10°/±25°/±50°
• Resolution: 0.005°/0.01°/0.02°
• Output: ±2.5 VDC or 0-5 VDC
• Power requirements: 8-24 VDC @ 7 mA; 10.5-26 VDC @ 7 mA for 0-5 VDC output
• Temperature range: -40 to +85°C
• Dimensions: 50.8 x 50.8 x 16.3 mm

---

About the High-Precision Biaxial Tilt Sensor – 900 Series

The 900 Series biaxial clinometer is a high-precision, gravity-referenced tilt sensor designed for accurate measurement of angular position in two axes (X and Y). Its compact design, excellent accuracy, and rugged construction make it ideal for demanding industrial and scientific applications.

With a measurement range of up to ±50° and a resolution of up to 0.01°, the sensor delivers reliable and repeatable results—even in challenging environments. The analog output options (±2.5 VDC or 0–5 VDC) allow for easy integration into existing control and monitoring systems.

The proven fluid-based sensing technology ensures outstanding long-term stability with minimal drift. Combined with a robust design, the sensor operates reliably across a wide temperature range from -40 °C to +85 °C.

Key Features:

• Biaxial tilt measurement (X and Y axes)
• Measurement ranges up to ±50° (model dependent)
• High resolution up to 0.01° with excellent repeatability
• Analog outputs (±2.5 V or 0–5 V)
• Compact and rugged construction
• Wide operating temperature range (-40 °C to +85 °C)
• Optional temperature output and custom calibration available

Typical Applications:

• Industrial machinery and equipment
• Construction and surveying
• Platform leveling systems
• Marine and offshore applications
• Research and development

Combining precision, stability, and flexibility, the 900 Series tilt sensor is an ideal solution for applications where accurate angle and position measurement is critical.

---
