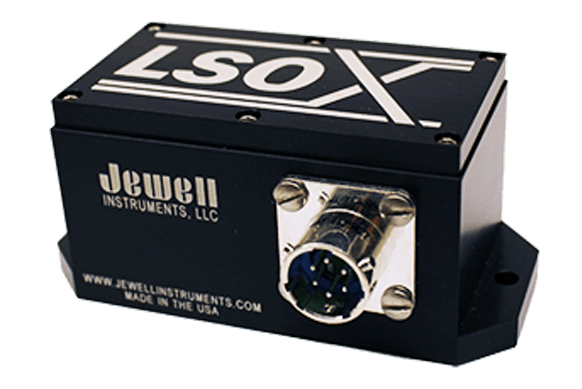

LSOX Single-Axis Analog Inclinometer
Precise fluid damped, flexure suspension servo inclinometer
Key features
- Extremely Rugged
- High Accuracy
- Temperature Compensation Available
- +/-5V, 0-5V or 4-20mA Output
- 15-30V or +/-15V DC Power Input
- RoHS Compliant
About the LSOX Single-Axis Analog Inclinometer
The LSOX fluid damped, flexure suspension, 1 axis-servo inclinometer is a precision instrument with internal grade sensing and it is the most robust solution designed to meet the needs of a variety of commercial, industrial, and aerospace applications.
The inclination sensor features input ranges from ±1.0° to ±90.0° with high reliability, high resolution, and low non-linearity.
Available configurations
The inclinometer is available in four different versions (D, L, S or S CE-marked), with varying outputs, in order to meet your specific needs. Download the datasheet for specifications per configuration.
- LSOX-D with +/-5V Output (general datasheet)
- LSOX-L with 4-20mA Output
- LSOX-S with 0-5V Output
- LSOX-SCE with 0-5V Output - CE marked
Applications
- High-precision Geotechnical
- Oil and Gas/Riser Tilt Monitoring
- Railroad MOW Equipment
- Pavement Profiling Rigs
- Vehicle Wheel Alignment
- Robotics
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| D, s and sce series: bandwidth, hz (-3 db) | 0,5 / 2 / 15 / 20 / 30 / 30 |
| D, s and sce series: full range output (vdc) | 0-5 / 0-5 / 0-5 / 0-5 / 0-5 / 0-5 |
| D, s and sce series: input range (deg.) | ±1 / ±3 / ±14,5 / ±30 / ±60 / ±90 |
| D, s and sce series: non-linearity (%fro) | 0,05 / 0,02 / 0,02 / 0,02 / 0,02/ 0,05 |
| D, s and sce series: resolution & threshold (µradians) | 1 / 1 /1 / 1 /1 / 1 |
| L series: bandwidth, hz (-3 db) | 0,5 / 2 / 15 / 20 / 30 / 30 |
| L series: full range output (ma) | 4-20 / 4-20 / 4-20 / 4-20 / 4-20 / 4-20 |
| L series: input range (deg.) | ±1 / ±3 / ±14,5 / ±30 / ±60 / ±90 |
| L series: non-linearity (%fro) | 0,05 / 0,03 / 0,03 / 0,03 / 0,03/ 0,05 |
| L series: resolution & threshold (µradians) | 1 / 1 /1 / 1 /1 / 1 |
