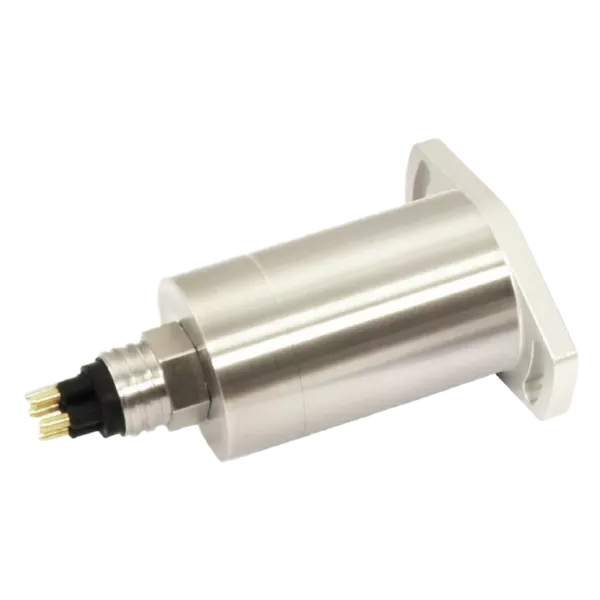

G623 Submersible Large Angle Tilt Sensor
CSA approved intrinsically safe underwater sensor for hazardous gas atmospheres
About the G623 Submersible Large Angle Tilt Sensor
Intrinsically safe 350bar G623 is CSA approved for use in potentially explosive gas/vapour atmospheres. The G603 is designed for industrial and scientific feedback applications and is ideal for OEMs seeking good sensor performance for harduous applications in hazardous areas.
It is sealed to IP68 350bar (5000psi, 3500m depth).
The G623, like all Positek® sensors, is supplied with the output calibrated to the angle required by the customer, between 15 and 160 degrees and with full EMC protection built in. The sensor provides a linear output characteristic with angle of deflection. There is a machined registration mark to identify the calibrated mid point.
Overall performance, repeatability and stability are outstanding over a wide temperature range.
Positek intrinsically safe sensors are designed to be used with a galvanically isolated amplifier . Approved galvanic isolation amplifiers (G005) are available from Positek; there is a choice of 0.5-9.5V or 4-20mA transmission outputs.
The sensor can be installed with a cable length up to 1km between the sensor and the amplifier.
Key features G623
- Intrinsically safe for Gas to: Class I, Zone 0 Ex ia / AEx ia
- Non-contacting inductive technology to eliminate wear
- Angle set to customer’s requirement
- Compact and self-contained
- High durability and reliability
- High accuracy and stability
- Sealing to IP68 350 Bar
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Damping ratio | 0.2 : 1 (0.6 nom. @ 25°C |
| Dimensions | Body Diameter 40 mm, Flange 69 mm | Body Length (to seal face) 81 mm |
| Drawing list | G623-11 Sensor Outline |
| Emc performance | EN 61000-6-2, EN 61000-6-3 |
| Environmental temperature limits | Operating -4°C to +50°C | Storage -4°C to +50°C |
| Independent linearity/hysteresis | (combined error) < ± 0.25° - up to 100° |
| Intrinsic safety | Class I, Zone 0 | Ex ia IIC T4 (Ta = -40°C to +80°C) | AEx ia IIC T4 (Ta = -40°C to +80°C) |
| Mtbf | 350,000 hrs 40°C Gf |
| Noise | < 0.02% FSO |
| Output signal | 0.5-4.5V dc ratiometric, Load: 5kΩ min. |
| Power supply | +5V dc nom. ± 0.5V, 10mA typ 20mA max |
| Resolution | Infinite |
| Response time | 250 mS @ 20°C typ. |
| Sealing | IP68 350Bar |
| Shock | IEC 68-2-29: 40 g |
| Temperature coefficients | < ± 0.01%/°C Gain & | < ± 0.01%FS/°C Offset |
| Vibration | IEC 68-2-6: 10 g |
