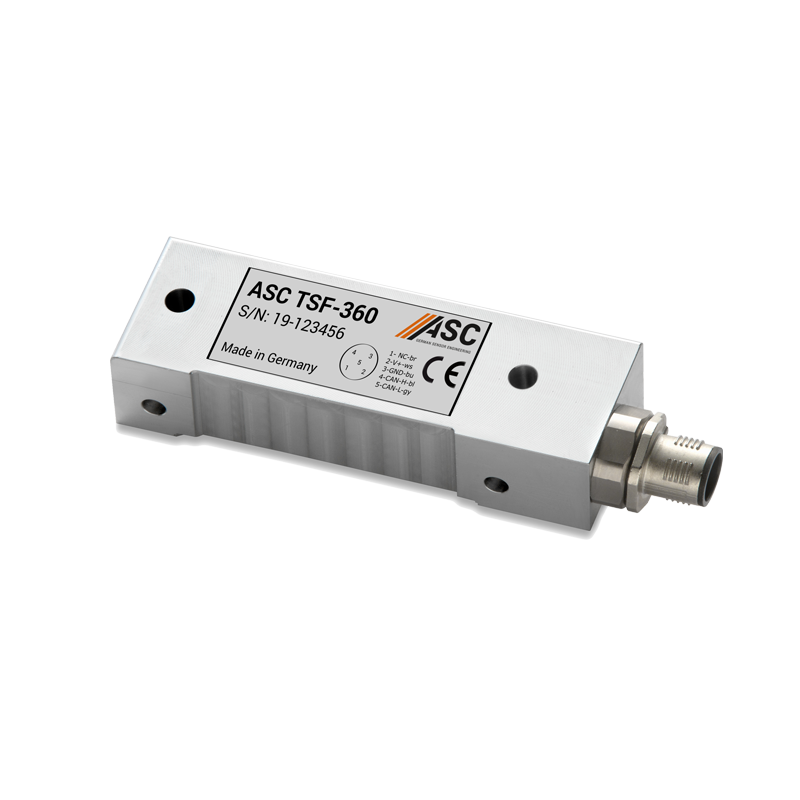

ASC TSF-360-CAN Digital Fluidic Tilt Sensor
Uniaxial tilt sensor which can be used as a 360° version
Key features
- Uniaxial
- Fluidic, Capacitive
- Measurement Range: 360°
- Accuracy: <0.15°
- Resolution: <0.01°
- Aluminum Housing
About the ASC TSF-360-CAN Digital Fluidic Tilt Sensor
The fluidic tilt sensors are using the physical effect that the surface of liquids is always aligned exactly horizontally due to gravity. By means of a suitable electrode arrangement, the angle between the sensors and the horizontal is capacitively measured with a dielectric liquid.
The ASC TSF is based on a proven technology using a fluidic operating principle. The integrated electronic circuitry ensures a flexible power supply voltage from 9 to 32 VDC. The analog measurement data is internally digitized and available via the CAN/CANopen interface. Due to internal compensation, the uniaxial tilt sensor features accuracy of better than 0.15° over complete measurement range of 360° and a temperature range from -40 °C to +85 °C, with a resolution of 0.01°.
The tilt sensors feature a robust and reliable aluminum housing with protection class IP67 and a standard 5-pin M12 CAN connector.
Additional features ASC TSF-360-CAN
- Uniaxial
- Fluidic, Capacitive
- Measurement Range: 360°
- Accuracy: <0.15°
- Resolution: <0.01°
- Aluminum Housing
- Made in Germany
- CAN/CANopen Interface
- DC Response
- Internal Compensation over Operating Range
- Internal Compensation over Temperature Range
Options ASC TSF-360-CAN
- Customized Connector Cable
Applications ASC TSF-360-CAN
- Renewable Energies
- Alignment of Machines and Vehicles in Construction and Agriculture Applications
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Accuracy (+10 °c - +40 °c) | 0.1 |
Angular range (°) | 360 |
Baud rate (standard) (kbit/s) | 250 |
Measurement rate (ms) | < 180 |
Operating temperature (voltage) (°c) | -40 to +85 |
Power supply voltage (v) | 9 to 32 |
Resolution (°) | 0.01 |
Weight (gram, excl. cable) | 80 |
