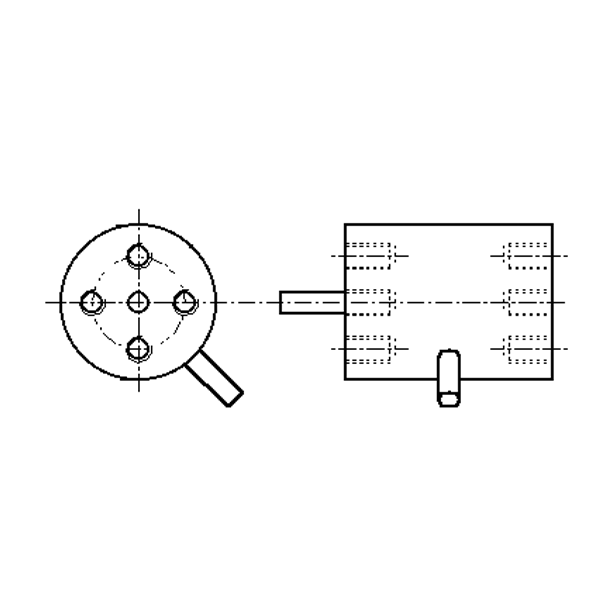

ATF311 Reaction Torque Sensor

Custom static torque transducer


Key features

  • Measurement ranges 0 - 2 Nm to 0 - 1.000 Nm
  • Custom non-linearity
  • Custom output signal
  • Custom supply voltage
  • Environmental sealing IP65
  • -10 to + 80 °C Operating temperature

About the ATF311 Reaction Torque Sensor

The static torque transducer series ATF311 is manufactured to specific requirements with ranges between 2 Nm and 1.000 Nm. For lower ranges please see series ATF315.

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Product downloads

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Cable length 2 m
Compensated temperature range -10 to +50 °C
Environmental sealing IP65
Non-linearity custom
Operating temperature range -10 to + 80 °C
Output custom
Temperature effect on rated output ±0.005 % AT/K
Temperature effect on zero load output ±0.01 % RT/K
Torque ranges customised from 0 - 2 Nm to 0 - 1000 Nm
Zero load output ±4 % RT
