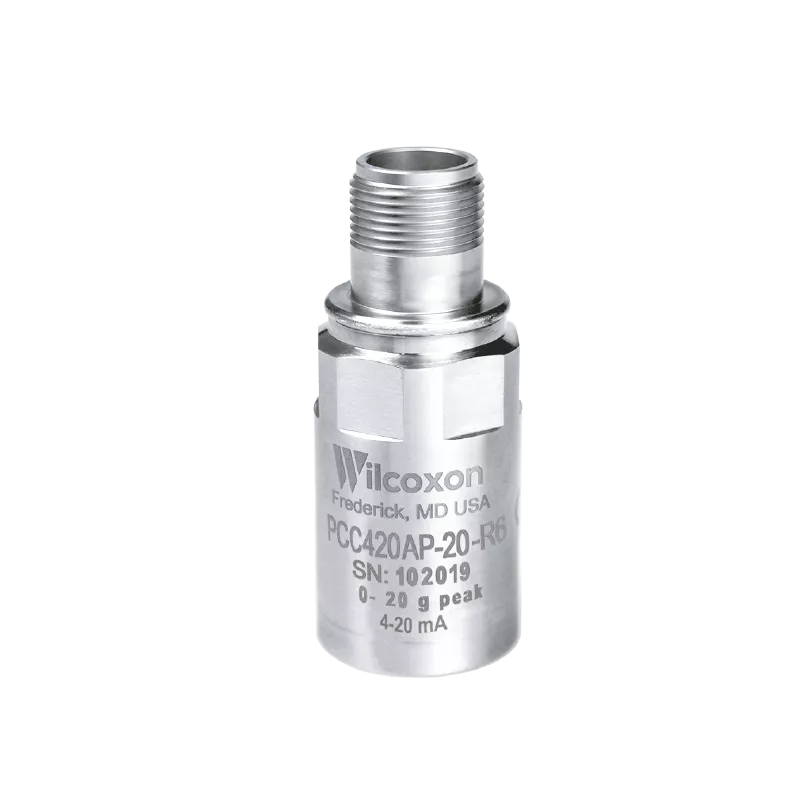

PCC420A Series 4-20 mA Vibration Sensors

RMS and peak acceleration loop powered sensors


Key features

  • True RMS or calculated peak output
  • Connector options: 2-pin MIL-C-5015 or 4-pin M12
  • Easily integrated into existing process control systems
  • Compact housing for applications with height restrictions
  • For continuous trending of overall machine vibration

About the PCC420A Series 4-20 mA Vibration Sensors

PCC420A series sensors provide a 4-20 mA output proportional to vibration, allowing for continuous trending of overall machine vibration. This trend data alerts users to changing machine conditions and helps guide maintenance
in prioritizing the need for service. The choice of RMS or peak output allows you to choose the sensor that best fits your requirements.


Key Features PCC420A Series

  • True RMS or calculated peak output
  • Connector options: 2-pin MIL-C-5015 or 4-pin M12
  • Easily integrated into existing process control systems
  • Compact housing for applications with height restrictions
  • Manufactured in an approved ISO 9001 facility

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Connector orientation Top exit
Connector style MIL-C-5015, 2-pin
Detector type Peak
Frequency response 3.5 Hz - 2,000 Hz
Full-scale range 10 g
Hazardous area approvals Non-approved
Measurement unit Acceleration
Sensor output 4-20 mA
Temperature range -40°C to +105°C
Weight 120 grams
